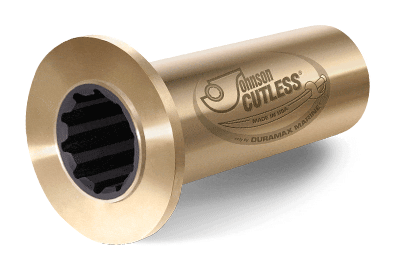

Johnson Cutless® Solid Naval Brass Flanged Bearings (Forward Stern Tube)

Johnson Cutless® Naval Brass Flanged Bearings are designed for stern tube and strut housing applications where secure retention and dependable water-lubricated performance matter. Centrifugally cast from naval brass, these bearings feature an integral flange that can be bolted to the housing to help retain the bearing and prevent rotation. Specially formulated nitrile rubber is securely bonded to the shell for oil and chemical resistance, while the heavy-walled construction adds structural strength for demanding marine service. Flanges are furnished undrilled unless otherwise specified, and a wide range of sizes is available for shaft diameters from 2 inches up to 15 inches.

• Centrifugally cast naval brass construction for strength and durability.
• Integral flange allows bolting to the stern tube or strut housing.
• Helps retain the bearing and prevent rotation in the housing.
• Specially formulated nitrile rubber is securely bonded to the shell.
• Oil- and chemical-resistant design for demanding marine environments.
• Heavy-walled shell provides added structural strength.
• Shells can be step turned if desired.
• Flanges are supplied undrilled unless otherwise specified.
• Meets MIL-DTL-17901C (SH) Class II Full-Molded type military specification.
• Full type approval from The American Bureau of Shipping.
• Available in a broad size range from 2 in. to 15 in. shaft diameters.
