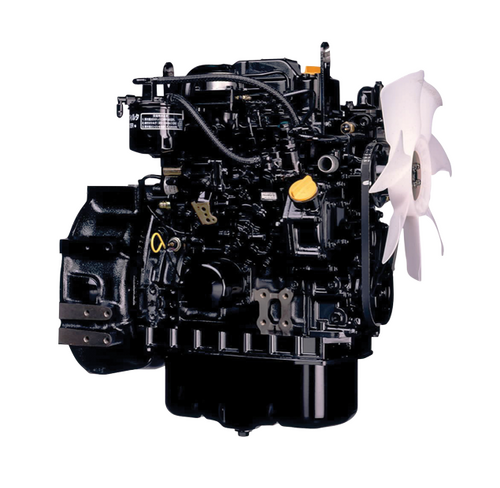

The Isuzu 3CJ1 diesel engine provides industry leading performance and holds up to the Isuzu mantra of "Performance that goes to work". This engine is offered in a 11.8 HP, constant speed rating option along with a 19 HP, variable speed rating option.
- Displacement: 0.9 L – 1.6 L
- Naturally aspirated
- Peak torque: 36.5 lb/ft – 45.1 lb/ft (varies by model)
- Fuel consumption: .413 LB/HP-HR – .465 LB/HP-HR
- Flywheel housing: SAE 5 – 6
- Electronic self-priming fuel lift pump
- 12V electronics
- Glow plug starting aid
- High angularity oil pan
- 250-hour or 500-hour oil drain & service interval
- 2-year / 2,000-hour limited warranty*
- Authorized Distributor
- Genuine Parts
- Service and Support
Base Specifications
| Displacement | 1.0 L (61.0 ci) |
| Dry Weight | 242 lbs |
| Cylinders | 3 |
| Rating | Constant Speed, Variable Speed |
| Series | C-Series |
| Emissions (US) | EPA Tier 4F |
| Emissions (EU) | Stage V |
3CJ1 (11.8 HP)
(Plus Base Specs)
| Horsepower | 11.8 hp |
| Power | 8.8 kW |
| Engine Speed | 1800 RPMs |
3CJ1 (19 HP)
(Plus Base Specs)
| Horsepower | 19 hp |
| Power | 14.2 kW |
| Engine Speed | 3000 RPMs |
