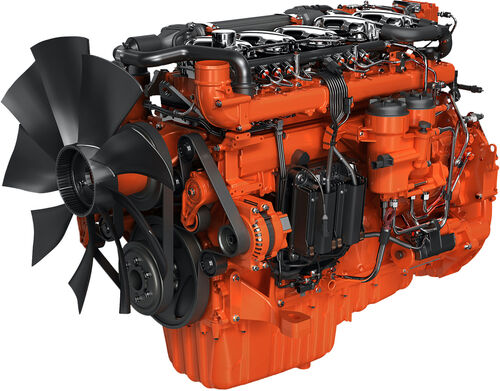

The Scania DC09 086A diesel engine takes performance, dependability and operating economy to new heights. This engine is offered in a range of power ratings from 375 HP to 400 HP.
- Scania Engine Management System, EMS
- Extra high pressure fuel injection system, XPI
- Variable Geometry Turbocharger
- Fuel filter and extra pre-filter with water separator
- Fuel heater
- Oil filter, full flow
- Centrifugal oil cleaner
- Oil cooler, integrated in cylinder block
- Oil filler in cylinder block
- Deep front oil sump
- Oil dipstick in cylinder block
- Magnetic drain plug for oil draining
- Starter motor, 1-pole 6.0 kW
- Alternator, 1-pole 100 A
- Flywheel, for use with friction clutch
- Silumin flywheel housing, SAE 1 flange
- Front-mounted engine suspension
- SCR system
- EGR system
- Open crankcase ventilation
- Authorized Distributor
- Genuine Parts
- Service and Support
Base Specifications
| Displacement | 9.3 L (567.5 ci) |
| Dry Weight | 2149 lbs |
| Cylinders | 5 |
| Rating | Variable Speed (IFN) |
| Series | 9 Liter |
| Emissions (US) | EPA Tier 4F |
| Emissions (EU) | Stage IV |
DC09 086A (375 HP)
(Plus Base Specs)
| Horsepower | 375 hp |
| Power | 276 kW |
| Engine Speed | 2100 RPMs |
| Torque (lb-ft) | 1381 |
| Torque (Nm) | 1873 |
DC09 086A (400 HP)
(Plus Base Specs)
| Horsepower | 400 hp |
| Power | 294 kW |
| Engine Speed | 2100 RPMs |
| Torque (lb-ft) | 1383 |
| Torque (Nm) | 1876 |
