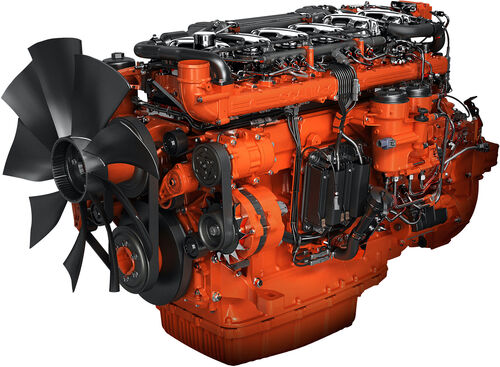

The Scania DC13 076A diesel engine takes performance, dependability and operating economy to new heights. This engine is offered in a range of power ratings from 350 HP to 450 HP.
- Scania Engine Management System, EMS
- Unit injectors, PDE
- Turbocharger
- Saver ring in cylinder liner
- Fuel filter and extra pre-filter with water separator
- Oil filter, full flow
- Centrifugal oil cleaner
- Oil cooler, integrated in cylinder block
- Oil filler, in valve cover
- Deep front oil sump
- Oil dipstick, in cylinder block
- Magnetic drain plug for oil draining
- Starter motor, 1-pole 6.0 kW
- Alternator, 1-pole 100 A
- Flywheel, for use with friction clutch
- Silumin flywheel housing, SAE 1 flange
- Front mounted engine suspension
- Open crankcase ventilation
- Authorized Distributor
- Genuine Parts
- Service and Support
Base Specifications
| Displacement | 12.7 L (775 ci) |
| Dry Weight | 2314 lbs |
| Cylinders | 6 |
| Rating | Constant Speed (ICFN), Variable Speed (IFN) |
| Series | 13 Liter |
| Emissions (EU) | Stage IIIA |
DC13 076A (350 HP)
(Plus Base Specs)
| Horsepower | 350 hp |
| Power | 257 kW |
| Engine Speed | 2100 RPMs |
| Torque (lb-ft) | 1227 |
| Torque (Nm) | 1664 |
DC13 076A (400 HP)
(Plus Base Specs)
| Horsepower | 400 hp |
| Power | 294 kW |
| Engine Speed | 2100 RPMs |
| Torque (lb-ft) | 1423 |
| Torque (Nm) | 1930 |
DC13 076A (450 HP)
(Plus Base Specs)
| Horsepower | 450 hp |
| Power | 331 kW |
| Engine Speed | 2100 RPMs |
| Torque (lb-ft) | 1480 |
| Torque (Nm) | 2007 |
