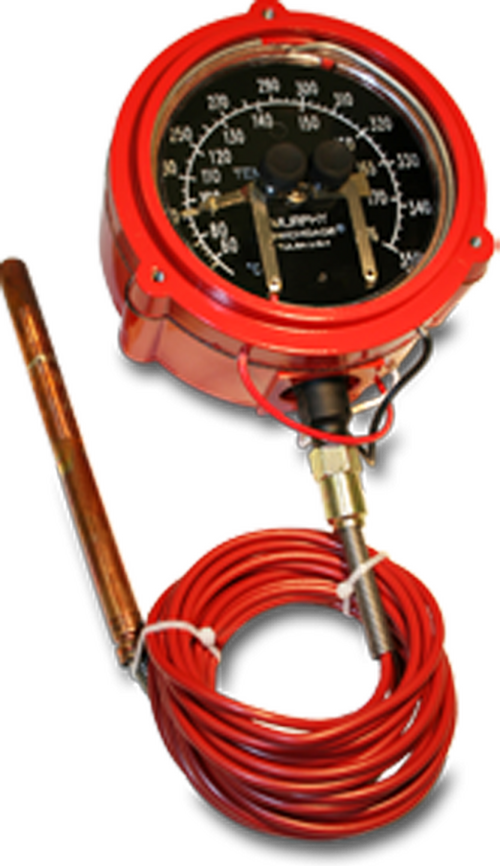

Murphy spl 45te

Features

• Combination Indicating Gage and Critical Temperature Limit Switches

• High and Low Temperature Limit Contacts Are Visible and Adjustable

• SPDT Snap-Acting Models

• Panel and Wall Mount Versions

• Latching Control Relay Versions Available

Contact Us

Dial: White on black, dual scale, °F and °C standard, 4-1/2 in. (114 mm) diameter.

Case: Die cast aluminum, surface or panel mount.

Capillary: PVC armored copper tube, 5 ft. long (1.5 m.) standard–see options.

Sensing Bulb: Copper bulb: 1/2 in. (13 mm) OD; Length: 7 in. (178 mm). Minimum bulb insertion– see corresponding chart, on page 2. Pressure Rating: 600 psi (4.1 MPa) [41 bar]. Connection: 1/2 NPT compression fitting.
