Features:

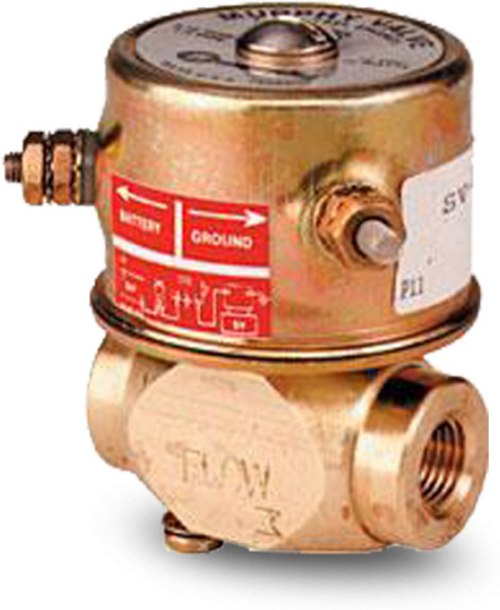

  • Solenoid Operated Fuel Shutoff Valve
  • Diesel Engines
  • Diesel Driven Pumps and Compressors
  • High Pressure Models
  • Select from 12 or 24 VDC Models

Electrical Rating: 12 VDC, 10 watts

Orifice: 3/16 in. (5 mm) diameter (optional 1/4 in. [6 mm] diameter). See chart.

Body Connections: 1/4 NPT inlet/outlet

Maximum Opening Pressure:
3/16 in. (5 mm) orifice: 30 psi (207 kPa) [2.07 bar]
1/4 in. (6 mm) orifice: 15 psi (103 kPa) [1.03 bar]
