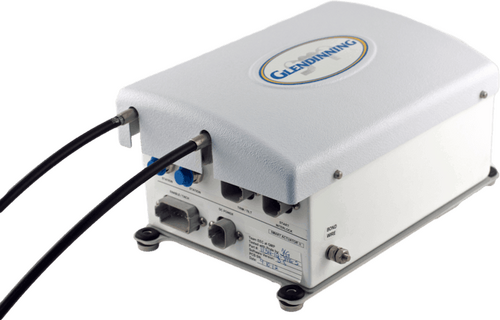

Glendinning Smart Actuator 2 Mechanical Marine Engine Control System
Electronic control for mechanical engines and transmissions
- Single or Dual lever control
- Adjustable control head detent / friction settings
- “Posi-lock” gear lockout
- High Idle mode
- Bump mode
- Battery voltage warning indicator
- System diagnostic warning indicator
- Gear positioning indicating lights
- Audible neutral indicator
- Control head keypad light dimmer
- Two button station transfer
Dimensions
APPLICATIONS
Outboard / Stern Engines
- Mechanically controlled engine and transmission
- Integrated Trim Control
- Up to 6 stations possible
- Single station / Single engine shown in example
Inboard Engines
- Mechanically controlled engine and transmission
- Integrated Troll control available
- Up to 6 stations possible
- Twin station / Twin engine shown in example
- Authorized Distributor
- Genuine Parts
- Service and Support
Model Number
Actuator 2
| Part Number | Engine | Input Voltage |
|---|---|---|
| 11314-12-TMG-P | Port | 12 Volt |
| 11314-24-TMG-P | Port | 24 Volt |
| 11314-12-TMG-S | Starboard | 12 Volt |
| 11314-24-TMG-S | Starboard | 24 Volt |
