Gledinning CH2001 Pro Grade XD Top Mount Marine Control

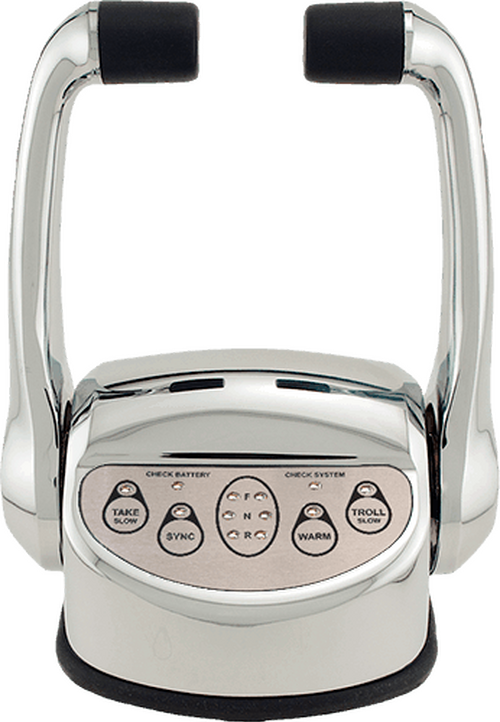

Glendinning CH2001 ProGradeXD Top Mount Marine Control

The CH2001 ProGradeXD Series is built to withstand the worst marine conditions. Equipped with the same features as CH2001 ProGrade, the ProGradeXD also incorporates a heavy-duty stainless steel touch keypad which can withstand rugged environments (Available in 4 button keypad configuration only).

Palmer Johnson is an authorized Glendinning distributor and we are your go-to source for the CH2001 ProGradeXD. Contact the experts today to learn more about how we can assist you!


Timeless Design
The classic, sleek design will give the sense of quality to any helm station.

Powerful Communication
Integrated switches and indicator lights which allow the operator to control all aspects of the boat’s propulsion system.

Single Or Dual Handle
Handle configurations for both single engine and dual engine applications.

Unlimited Control Stations
Any system can handle an unlimited number of stations.

Integrated Trim Control
Control outboard and sterndrive engine trim separately from keypad or in unison with in-handle trim control. (optional)

Trolling Valve Control
Integrate and control trolling valves for hassle-free trolling through no wake areas or while fishing. (optional)


ProGrade Construction
Designed to completely protect control head from external water ingress and suitable for extreme environments (IP68) and applications where the control head may be submerged.

Industry Leading Technology
Utilizes dual channel non-contact (Hall Effect) sensors for handle position measuremenet to allow greater reliability and protection from moisture penetration. CAN network provides greater reliability in communication and ease of installation.

High Quality Materials
Polished stainless steel control body and handles

Crisp, Well-Defined Gear Shift Detents
Indicates distinct gear shift position using clearly and crisply defined detents at neutral, forward idle, and reverse idle.

Wide Variety of Applications
Compatible with inboard, outboard, sterndrive, and water jet systems.

Contact Us

Model Number
CH2001 ProGradeXD

Part NumberDescription
11419-SGIN-P4SSCC1 CH2001 ProGradeXD - Single, Inboard, PORT, 4 Button
11419-SGIN-S4SSCC1 CH2001 ProGradeXD - Single, Inboard, STBD, 4 Button
11419-TWIN-4SSCC1 CH2001 ProgradeXD - Twin, Inboard, 4 Button
