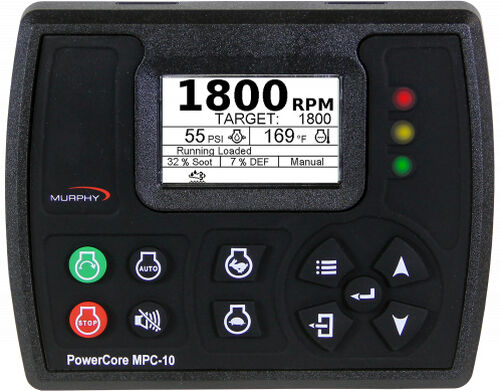

Mpc 10 copy

Murphy’s PowerCore MPC-10 is a configurable, all-purpose controller perfect for rental and fleet applications.

This powerful controller is a general controller for mechanical or electronic engine applications needing manual/auto start and manual/auto throttling. It supports J1939 CAN protocols for electronically governed engines as well as I/O for mechanical engines for fault and safety shutdowns. MPC-10 boasts three levels of menu security, perfect for rental fleet protection, which can easily be set with the configuration tool. It is designed for all weather environments and is also available as the ML 1000-4X panel solution. The menu structure is incredibly user-friendly, with the ability to change many parameters and settings from the face without the need of a PC tool, if desired. The MPC-10 can also be remotely automated and monitored using the Murphy CONNECT telematics unit.

Contact Us

Please be as specific as possible by including how we can assist along with any relevant information such as spec number, BOM number, or serial number.

  • Display: 2.7” WQVGA Monochrome HR-TFT 400x240
  • Keypad: 11 Tactile Feedback Buttons
  • LEDs: (1) Red, Shutdown, (1) Amber, Warning, (1) Green, Auto Mode or Running Loaded State
  • Outputs:
    • (3) Relays: 10A, SPDT, Form C (30 VDC @ 10A max.), 40A max aggregate @ 85C
    • (2) Low-side (1A)
    • (2) High-side (1A)
    • (1) Dedicated Alternator Excite (provides Charge Fail Fault if unable to excite alternator)
  • Inputs:
    • (5) Digital, configurable (high/low)
    • (3) Analog, configurable (4-20mA, 0-5V, resistive)
    • (1) Frequency, supporting Magnetic pickup (30Hz - 10kHz, 2.0VAC-120VAC) and Engine Alternator (30Hz - 10kHz, 4.5 VRMS - 90 VRMS)
  • Communications:
    • (1) CAN J1939
    • (1) RS485, MODBUS RTU
    • (1) USB 2.0B for Programming
  • Total Current Consumption: Power on in stopped state; 117 mA at 12 VDC. Power on in standby mode; 52 mA at 12 VDC.
  • Cranking Power Holdup: 0 VDC up to 50mS (also good for brownout/blackout instances)
  • Dimensions: 167.09mm (L) x 133.29mm (H) x 64.81mm (W)
  • Mass: 1lb. 1oz.
  • Operating Temperature: -40°C to +85°C (-40°F to 185°F)
  • Storage Temperature: -40°C to +85°C (-40°F to 185°F)
  • EMI/RFI: SAE J1113
  • Shock: ± 50G in axes
  • Vibration: Random, 7.86 Grms (5-2000Hz), 3 axes
  • Sealing: IP67 front and back, IP66 Panel Seal with Gasket
  • Case: Polycarbonate/ABS
  • Mating Connector: Deutsch Wedge Lock W12S-P012:
    • Gray DT06-12SA-P012
    • Black DT06-12SB-P012
    • Green DT06-12SC-P012
    • USB 6 pin
  • Shipping Weight: 2lbs. 7.1 oz. (1.11 kg)
  • Shipping Dimensions: 8 x 8 x 5-11/16 in. (204 x 204 x 127 mm)
  • Languages: English, Spanish, German, French, Italian
