Murphy by Enovation Powerview Tactile Button Displays - PV101

As of 3/31/23, the Murphy by Enovation Controls PV101 series has been discontinued. This Powerview display can be upgraded to the PV380 series, but there will be dimensional and wiring differences to account for. It is recommended to contact the experts at Palmer Johnson for more information regarding the discontinuation of the PV101 PowerView display module and what is needed to upgrade to the PV380.


PowerView 101 offers a simple connection to optional components and displays over 50 standard SAE J1939 parameters

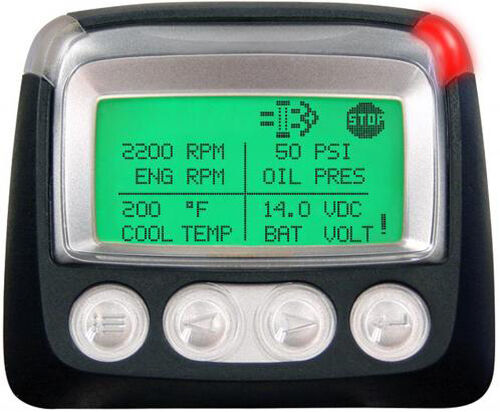

The PowerView PV101 display is a multifunction tool that enables equipment operators to view standard engine and transmission parameters and active/stored trouble codes. The display can show a single or a four-parameter simultaneous display with text descriptions for most common fault conditions. The enhanced alarm indicators have ultra-bright alarm and shut-down LEDs

Contact Us



Operating Voltage: 8 - 32 VDC

Reversed Polarity: Withstands reversed battery terminal polarity indefinitely within operating temperatures

Environmental

  • Operating Temperature: -40° to +185° F (-40° to +85° C)
  • Display Viewing Temperature: -20° to +185° F (-29° to +85° C)
  • Storage Temperature: -40° to +185° F (-40° to +85° C)
  • Environmental Sealing: IP68, ± 5 PSI (± 34kPa)

Power Supply Operating Current

  • (@ 14VDC) 52 mA min.: 300 mA max
  • (@ 32VDC) 1A max (with LCD heater)

CAN Bus: SAE J1939 compliant

Case: Polycarbonate/polyester

Maximum Panel Thickness: 3/8 inch (9.6 mm)

Auxiliary RS485 Communications Port

  • User configurable as MODBUS MASTER or MODBUS RTU SLAVE
  • MASTER ACTIVE (default) drives optional PVA or PVM gages
  • SLAVE ACTIVE offers user adjustable communication parameters

Resistive Input: user selectable as one of the following

  • Backlighting Potentiometer: 1 K Ohm, 1/4 W
  • Murphy Fuel Sender: 33 Ohm full, 240 Ohm empty set standard from factory for use with Murphy fuel sender. Programmable for use with non-Murphy fuel senders.

Shipping Weights (all models): 1 Lb. (450 g.)

Shipping Dimensions (all models): 5 x 6 x 6 in. (127 x 152 x 152 mm)

Clamp: PBT

Connectors: 6-pin Deutsch DT Series
