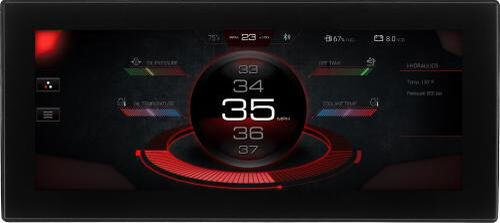

Murphy by Enovation Powerview Glass Front Displays- 1200
The Murphy PowerView® 1200 packs power and viewability in an ultra-wide display.
The PowerView 1200 is a full-color configurable display that integrates vital engine, transmission and diagnostic information into an easy-to-read operator interface. This large 12.3-inch display features an expansive 8GB of storage and a high-speed processor to boot quickly as well as seamlessly showcase graphics, transitions and videos. The display’s bonded LCD can easily be viewed, even in full sunlight, and its available glove-friendly touchscreen and rugged design make it a perfect solution for all types of environments and applications. The PV1200 is available in touchscreen and non-touchscreen models and is programmable with PowerVision Configuration Studio®.
- Authorized Distributor
- Genuine Parts
- Service and Support
- Computing
- Processor: Renesas® R-Car M2 with Arm® Cortex®-A15 dual-core processor @ 1.5 GHz (32-bit)
- Operating System: QNX® Realtime Operating System
- Storage: 8 GB flash memory
- RAM: 512 MB DDR3-SDRAM
- Graphics: Renesas graphics processor
- Display
- Screen Size: 12.3 inches (320 mm × 130 mm)
- Type: LVDS IPS LCD with LED backlight, 24-bit color
- Resolution: 1280 × 480
- Contrast Ratio: Typ. 800:1
- Brightness: 1000 cd/m2
- Surface: Anti-glare
- Touch Panel: Projected capacitive (PCAP) with glove touch
- Hardware
- Real Time Clock: Available with battery backup
- Connectors:
- (2) AMPSEAL 23 pin (main)
- (1) M12 5 pin [Ethernet] (optional)
- (1) USB pigtail
- Video Input: (3) NTSC/PAL (single channel viewable)
- Communication
- CAN: (2) CAN 2.0B according to ISO 11898-2, J1939 and proprietary messaging
- Serial: RS-485 serial (Modbus: master or slave)
- USB: USB 2.0 full speed host
- Ethernet: 1 X Ethernet 10/100 Base-T (optional)
- Wi-Fi: 802.11 b/g radio (optional)
- Bluetooth: Fully integrated Bluetooth 2.1, class 1 (optional)
- Electrical
- Operating Voltage: 6 – 36 VDC, reverse polarity protected
- Outputs:
- (1) 500 mA switched low-side
- (1) Frequency output (2Hz – 3KHz)
- Inputs:
- (3) Analog 0 – 5 VDC, 4-20 mA, resistive, 10-bit resolution
- (5) Discrete digital, active-high
- (1) Frequency in (2Hz – 10kHz) 5V pk-pk min, 49V pk-pk max
- Environmental
- Operating Temperature: -40˚C to +70˚C (-40˚F to +158˚F)
- Storage Temperature: -40˚C to +85˚C (-40˚F to +185˚F)
- Protection: IP66 and IP67, front and back, for outdoor use
- Vibration: 3.9 Grms (10 – 350Hz), 3 axes (ISO 15003)
- Shock: ±50G in 3 axes
- EMC/EMI: SAE J1113, ISO 13766, CE per 2014/30/EU
