Murphy by Enovation Powerview Tactile Button Displays - 25

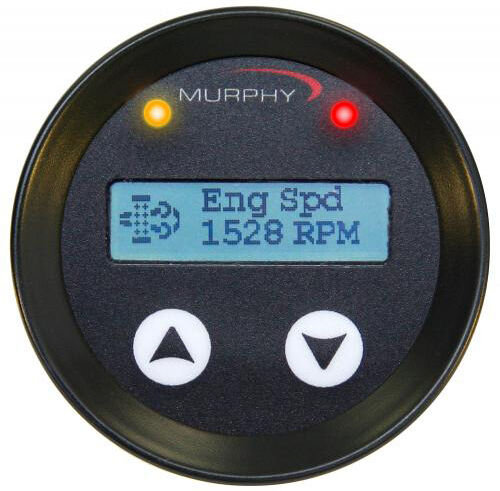

The PowerView 25 is an engine and diagnostic display in an economical, compact package.

This J1939-compliant device provides electronic engine parameter data, is simple to install, matches the PowerView line of rugged displays and can be powered by 12-volt or 24-volt systems. The PV25 is equipped with two push buttons to quickly access a convenient menu. In addition, a back-lit graphic display and two LEDs indicate Active-fault Alarm or Shutdown status. Active and Stored Fault messages display the SPN (Suspect Parameter Number), FMI (Failure Mode Indicator) and the OC (Occurrence Count) using the SAE J1939 protocol. The PV25 displays up to 20 standard J1939 parameters in standard or metric units.

Contact Us

Please be as specific as possible by including how we can assist along with any relevant information such as spec number, BOM number, or serial number.

  • Engine Parameters:
    • Engine RPM
    • Engine Oil Pressure
    • Engine Hours
    • Coolant Temperature
    • ITA/Stage IIIB Parameters
    • Active Service Codes
    • System Voltage
    • Stored Service Codes
  • Tier 4 / Stage IIIB/IV Compliant Ready
  • Operating Voltage: 6 VDC minimum to 36 VDC maximum
  • Power Supply Operating Current:
    • 460mA max @ 12 VDC
    • 810mA max @ 24 VDC
  • Reversed Polarity: Withstands reversed battery terminal polarity

Environmental

  • Operating Temperature: -40° to 158°F (-40 to 70°C)
  • Storage Temperature: -67° to 185°F (-55 to 85°C)
  • Sealing: IP68
  • CAN Bus: SAE J1939 compliant

Connectors

  • 4-pin AMP Mini-universal Mate-N-Lok Connector
  • AMP Plug: P/N 172338-1
  • AMP Socket: P/N 171639-1 (4 each, assumes 18 gage wire. See
  • AMP Plug specification to match socket and wire size.)
  • Maximum Panel Thickness: 3/8 inch (9.6 mm)
  • Shipping Weight: (all models) 0.2 lb. (0.1 kg)
  • Shipping Dimensions: (all models)
    3-7/8 x 2-3/4 x 2-3/4 in.
    (98.4 x 69.85 x 69.85 mm)
