Murphy by Enovation Powerview Tactile Button Displays - PV380

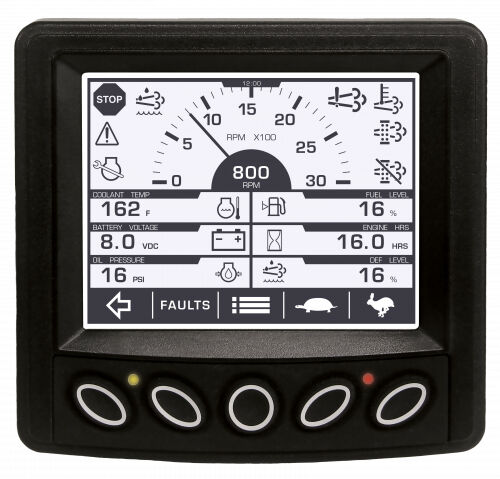

The Murphy PowerView 380 features robust, multifunction displays for advanced monitoring of multiple electronic engines.

It’s capable of monitoring multiple engines and machine parameters on an easy-to-read 3.8-inch (97mm) QVGA monochrome LCD. The display is capable of handling sophisticated engine diagnostics as well as basic engine alarm/shutdown. Customize the PV380 display using the PowerVision Configuration Studio®, an intuitive tool designed to make customization simple. Using the software tool, users can tailor basic graphics, designate screen layout and define custom parameters. The PV380 is equipped with five tactile push buttons to quickly access a convenient menu. In addition, a backlit and heated graphic display with LEDs indicate alarm or shutdown status.


Murphy by Enovation Controls PV380 Specs:

  • Operating Voltage: 6-36 VDC
  • Vibration and Shock: 7.86 random vibe (5-2000HZ) and ±50g shock in 3 axes
  • Reversed Polarity: withstands reversed battery terminal polarity
  • Operating Temperature: -40° to 185° F (-40° to 85° C)
  • Storage Temperature: -40° to 185° F (-40° to 85° C)
  • Communications: (1) CAN 2.0B; J1939 Protocol; Proprietary Messaging; (1) RS-485 serial
  • EMC/EMI:
    • 2004/108/EC and 2006/95/EC directives
    • EN61000-6-4:2001 (emission)
    • EN61000-6-2:2001 (immunity)
    • EN-50121-3-2 and EN 12895
  • Connectors: Deutsch DT Series 6 and 12 pin
  • Inputs: (4) resistive analog; (3) analog; 0-5V/4-20mA analog or digital; (1) frequency 2-10000Hz, 3.6-120VAC
  • Outputs:
    • (2) 500 mA; switched low-side
  • SAE J1113/2, 4, 11, 12, 21, 24, 26 and 41
  • Display: 3.8” (97mm) QVGA (320x240 pixels); monochrome transflective LCD with white LED backlight and heater
  • Viewing Angle: ±50 horizontally; +45°/-60° vertically
  • Keys: 5 tactile push buttons
  • Alarms: Red and amber warning LEDs; capable of set point-triggered output for external piezo buzzer or shutdown relay
  • Real-time clock: With Li-ion rechargeable battery backup

Contact Us

Model & Part Numbers:

PV380, PV380R1, PV380R2, PV380R3, PV380-R1, PV380-R2, PV380-R3, 78700539, 78700587, 78700609, 78700708
