Murphy panel 751600

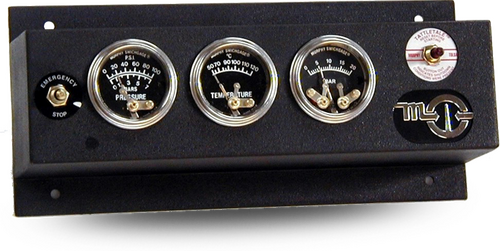

This Swichgage panel is specifically configured for irrigation engines and includes loss of pump discharge pressure Swichgage instrument. The panel is enclosed on top, bottom, and both ends. Mounting flanges extend on top and bottom. The back of the panel is open. Access holes are in the bottom.

Features:

■ Ideal for Irrigation Engines
■ Includes Loss of Pump Discharge
Pressure and High Coolant Temperature Swichgage Instruments
■ Model With Solenoid Fuel Shutoff Valve

Contact Us

Low Lube Oil Pressure Swichgage instrument:
0-100 psi (0-689 kPa) [0-6.89 bar]
1/8 NPT process connection

Low Pump Pressure Swichgage instrument:
0-150 psi (1.03 MPa) [10.34 bar]
1/8 NPT process connection

High Coolant Swichgage instrument:
130-250°F (54-121°C)
48 in. (1.2 m) capillary
1/2 NPT process connection

518PH Magnetic Switch: 12 or 24 volt (specify)

SV Series Solenoid Fuel Shutoff Valve: 12 or 24 volt (specify)
