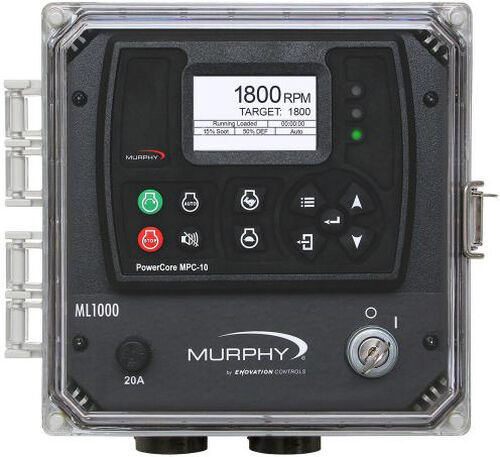

Murphy’s ML1000-4X incorporates all the power and functionality of the PowerCore MPC-10 Controller in a panel solution for most any engine-driven application.
The ML1000-4X features a polycarbonate enclosure and standard harnessing for most major engine manufacturer ECUs. It is IP67 rated to withstand harsh environments and features an out-of-the-box, fully sealed, powerful all-purpose industrial controller. ML1000 is Tier 4 / Stage IV ready and features three configurable levels of passcode protection, perfect for rental applications. It is engineered for incredibly easy initial setup and is configurable by the user to meet the most versatile applications, allowing for quick uptime and less headaches on the manufacturing floor or in the field.
- Authorized Distributor
- Genuine Parts
- Service and Support
- Display: 2.7” WQVGA Monochrome HR-TFT 400x240
- Keypad: 11 Tactile Feedback Buttons
- LEDs: (1) Red, Shutdown, (1) Amber, Warning, (1) Green, Auto Mode or Running Loaded State
- Outputs:
- (3) Relays: 10A, SPDT, Form C (30 VDC @ 10A max.), 40A max aggregate @ 85C
- (2) Low-side (1A)
- (2) High-side (1A)
- (1) Dedicated Alternator Excite (provides Charge Fail Fault if unable to excite alternator)
- Inputs:
- (5) Digital, configurable (high/low)
- (3) Analog, configurable (4-20mA, 0-5V, resistive)
- (1) Frequency, supporting Magnetic pickup (30Hz - 10kHz, 2.0VAC-120VAC) and Engine Alternator (30Hz - 10kHz, 4.5 VRMS - 90 VRMS)
- Communications:
- (1) CAN J1939
- (1) RS485, MODBUS RTU
- (1) USB 2.0B for Programming
- Total Current Consumption: Power on in stopped state; 117 mA at 12 VDC. Power on in standby mode; 52 mA at 12 VDC.
- Cranking Power Holdup: 0 VDC up to 50mS (also good for brownout/blackout instances)
- Dimensions: 167.09mm (L) x 133.29mm (H) x 64.81mm (W)
- Mass: 1lb. 1oz.
- Operating Temperature: -40°C to +85°C (-40°F to 185°F)
- Storage Temperature: -40°C to +85°C (-40°F to 185°F)
- EMI/RFI: SAE J1113
- Shock: ± 50G in axes
- Vibration: Random, 7.86 Grms (5-2000Hz), 3 axes
- Sealing: IP67 front and back, IP66 Panel Seal with Gasket
- Case: Polycarbonate/ABS
- Mating Connector: Deutsch Wedge Lock W12S-P012:
- Gray DT06-12SA-P012
- Black DT06-12SB-P012
- Green DT06-12SC-P012
- USB 6 pin
- Shipping Weight: 2lbs. 7.1 oz. (1.11 kg)
- Shipping Dimensions: 8 x 8 x 5-11/16 in. (204 x 204 x 127 mm)
- Languages: English, Spanish, German, French, Italian
