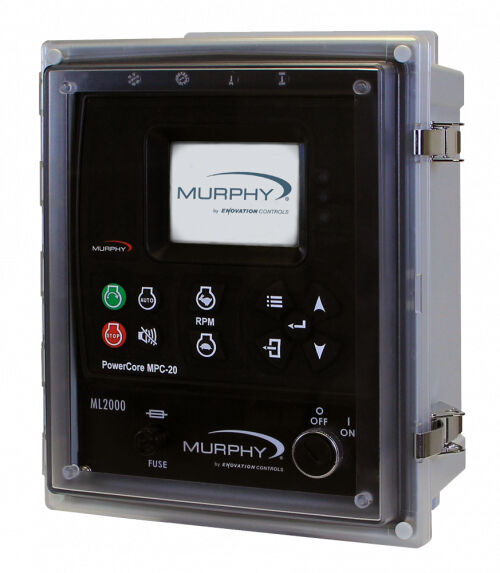

Murphy’s ML2000 control panel series incorporates all the power and functionality of the PowerCore® MPC-20 Controller in a panel solution for most any engine-driven application.

The ML2000 panel series features polycarbonate, metal enclosure or flat panel options and standard harnessing for most major engine manufacturer ECUs. It is built to withstand harsh environments and features an out-of-the-box, fully sealed, powerful all-purpose industrial controller. ML2000 is Tier 4 / Stage IV ready and is easily viewable in full-sun conditions with a large 3.8-inch easy-to-read, monochrome transflective LCD. It is engineered for incredibly easy initial setup and is configurable by the user to meet the most versatile applications, allowing for quick uptime and less headaches on the manufacturing floor or in the field.

Contact Us

Please be as specific as possible by including how we can assist along with any relevant information such as spec number, BOM number, or serial number.

  • Controller: MPC-20
  • Operating Voltage: 8-32VDC
  • Total Current Consumption:
    • 18W Max without 2 2A High-sides active,
    • 146W Max with 2 2A High-sides active
  • Operating Temperature: -40° to +85°C (-40° to 185°F)
  • Storage Temperature: -40° to +85°C (-40° to 185°F)
  • Enclosure: Powder-coated cold rolled steel or polycarbonate
  • Mating Connectors:
    • 21 Position, Deutsch HDP26-24-21SE
    • 31 Position, Deutsch HDP26-24-31SE
  • Shipping Weight:
    • ML2000: 13 lbs (5.9kg)
    • ML2000-FP: 7 lbs (3.17kg)
    • ML2000-4X: 11 lbs (4.99kg)
  • 13 Outputs:
    • (2) 1A Max Low-side
    • (2) 2A Max High-side
    • (2) 200mA Max 5VDC
    • (1) 0-5VDC Analog
    • (6) 10A Max Form C Relays
  • 15 Inputs:
    • (8) Analog, configurable as Resistive, 0-5VDC or 4-20mA
    • (6) Digital, Configurable as Battery or Ground
    • (1) Frequency, (2Hz - 10KHz, 3.6VAC-120VAC)
  • Communications: CAN (SAE J1939) and RS-485 Modbus
