RTR Doosan

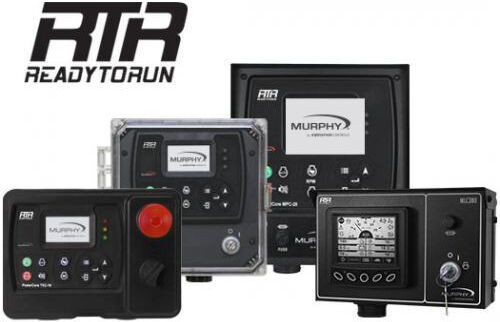

Get running in minutes with Murphy’s Ready To Run Panels for Doosan Engines.

The panels have everything you need in one plug-and-play solution. Match your needs with the best option whether you need engine monitoring or a more sophisticated full engine control system. With several levels of panel options, it will be easy to find the solution right for you.

The Ready to Run Panels are engineered to manufacturers’ requirements and work out of the box with minimal set-up time. These panels put control at your fingertips allowing operators to monitor and change settings easily in the field.

Supported Engines:

  • FT4 D10 - 4500
  • FT4 D10 - 4800
  • FT4 D18
  • FT4 D24
  • FT4 D34
  • FT4 D34 SCR

Contact Us

Please be as specific as possible by including how we can assist along with any relevant information such as spec number, BOM number, or serial number.

PowerView® MLC380:

  • Display: 3.8-inch (97 mm) QVGA monochrome transflective LCD; 320 x 240 pixels
  • Keys: 5 tactile push buttons
  • LEDs: red, shutdown; amber, warning
  • Start Type: Manual Start
  • Throttle Type: Manual

PowerCore® TEC-10:

  • Display: 2.7-inch (68 mm) WQVGA monochrome HR-TFT; 400 x 240 pixels
  • Keys: 11 tactile feedback buttons
  • LEDs: red, shutdown; amber, warning; green, auto mode or running loaded state
  • Start Type: Manual and Auto Start
  • Throttle Type: Manual and Auto Throttling

PowerCore® ML1000:

  • Display: 2.7-inch (68 mm) WQVGA monochrome HR-TFT; 400 x 240 pixels
  • Keys: 11 tactile feedback buttons
  • LEDs: red, shutdown; amber, warning; green, auto mode or running loaded state
  • Start Type: Manual and Auto Start
  • ThrottleType: Manual and Auto Throttling

PowerCore® ML2000:

  • Display: 3.8-inch (97 mm) QVGA monochrome transflective LCD; 320 x 240 pixels
  • Keys: 11 tactile feedback buttons
  • LEDs: red, shutdown; amber, warning; green, auto mode
  • Start Type: Manual and Auto Start
  • Throttle Type: Manual and Auto Throttling
