Murphy b series

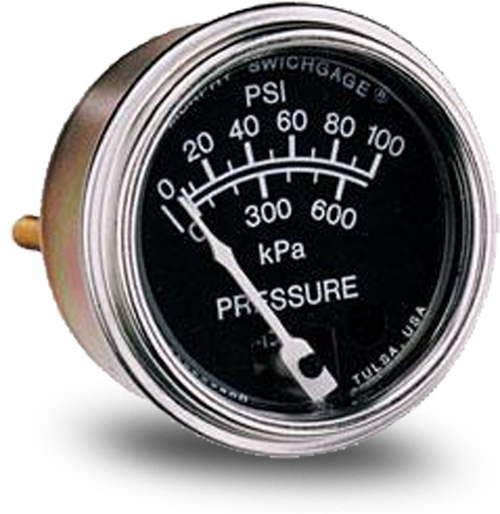

B-Series Pressure, Vacuum, and Temperature Gauges

Features
• 2 in. (51 mm) Dial Gages
• Heavy-duty Rated
• Environmentally Sealed2
• Pressure Models Up to 400 psi (2.76 MPa) [27.6 bar]
• Temperature Models Up to 440°F (220°C)


Temperature Range:

  • Pressure/Vacuum: Ambient: -40°F (-40°C) thru 150°F (66°C).
  • Process: -40°F (-40°C) thru 250°F (121°C).

Maximum Panel Thickness: 1/4 in. (6 mm).

Port: Brass.

Case: Plated steel; mounting clamp included (except for direct mount models).

Bezel: Polished stainless steel, standard; optional bezels are available (see How to Order).

Pointer: White (black dial); black (white dial).

Lens: Polycarbonate, high-impact.

Sensing Element: Beryllium copper diaphragm.
