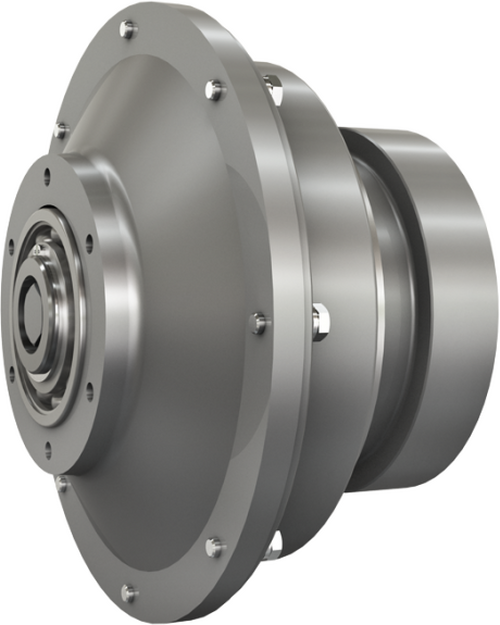

Transfluid TPO TPH

TPO air clutches are powerful and reliable components, the technical development of which has been achieved with years of experience in transmissions.
Their performance range can fulfill the most different applications, with transmittable torques up to 1170 daNm, remaining constant without requiring any further regulation.
While having the great advantage of being modulated with air pressure variation, their compressed air feeding system can be remote controlled and automatically self compensate for wear.

TPO air clutches: features
The main technical features of TPO air clutches are:

  • All the operating discs are made of high-quality cast iron, with large surfaces from where heat generated with friction is easily dissipated without creating dangerous tensile stresses.
  • The friction discs are made of a composite compound without asbestos and are provided with external gear teeth to engage into the driving ring’s internal gears.
  • The external dimensions are very small and for this reason the assembly phase is facilitated.
  • The wide dimensions of the bores allow shafts with large diameters to be mounted.

In normal and medium operating conditions, clutches with 2 or 3 discs can be used, transmitting a torque twice or three times more than the corresponding one with a single disc, and leaving external dimensions unchanged.
