Transfluid HTM700

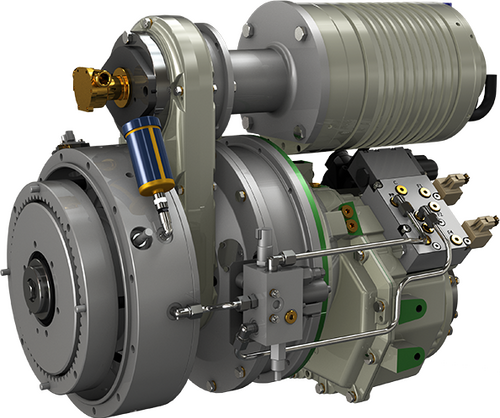

Transfluid HTM700 Hybrid Marine Transmission

The HTM700 marine hybrid transmission system offers the SAE4 bell coupling inlets and outlets; the maximum input torque (Tkn) is 560 Nm (414 lb-ft), the maximum input power is 145 kW (187 hp) with a maximum speed of 3000 rpm and overall weight of 221 kg (487 lb).

The TRANSFLUID HTM700 marine hybrid transmission system is made up of the following TRANSFLUID products:

  • SAE multi-disc clutch system, to connect and disconnect the internal combustion engine
  • Solenoid clutch-control valve
  • Power shift with SAE B power take-off
  • Permanent magnet electric machine (max 35kW or 47hp) with motor or generator function
  • Marine Powershift gear-box with RBD flexible coupling
  • Electric selector with in-built Soft-Shift
