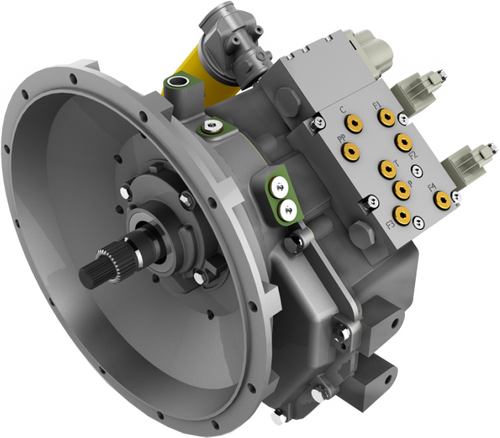

Transfluid Revermatic Transmission

The REVERMATIC is a Power shuttle transmission specifically designed for industrial applications requiring quick directional reversing and smooth clutch engagement.

It consists of an hydraulically activated gear unit, the forward and reverse multiple disc clutch assembly are mounted on the lay shaft and input shaft respectively . They are operated by the hydraulic selector, electrically actuated, with a patented built-in “soft shift” device.

The transmission input shaft is connected to engine flywheel through a single stage torque converter which is selected in accordance to the engine rating and required transmission vehicle performance, thanks to its characteristics it eliminates the mechanical connection between engine and driven machine allowing smooth power transfer.

The REVERMATIC is also available for marine application having on input side an RBD elastic coupling instead of torque converter.
