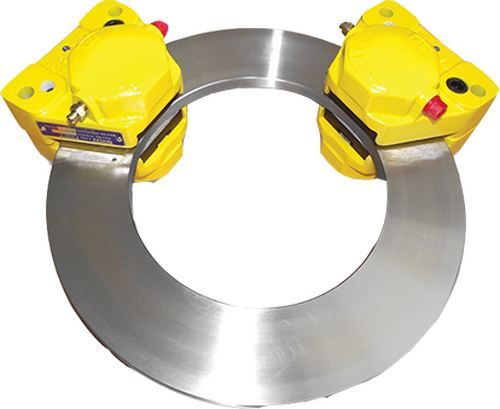

Twiflex T30 Topdrive Caliper Brake

The Twiflex T30 is a pressure applied modular brake design, developed to provide a high braking force capacity from a compact assembly. It features a split housing for flexibility of mounting and accommodation of a variety of disc thicknesses.

Twiflex T30 Specs:

  • 120 bar (1740 psi) operating pressure produces 25.4 kN (5710 lb) braking force
  • Side or centre-mount arrangement
  • Compact, robust housing design
  • #4 SAE o-ring port per SAE J1926/1: 7/16-20
  • Self-adjusting mechanism maintains a constant air gap for consistent response times
  • Minimum disc diameter of 245 mm (9.6 in)
  • Standard disc thickness 25.4 mm (1.0 in)
  • Design operating range between from -20°C to +70°C (-4°F and 158°F)
  • Custom levels of finish and protection available
