Twin Disc MGE 5126 SC Hybrid Electric Marine Transmission

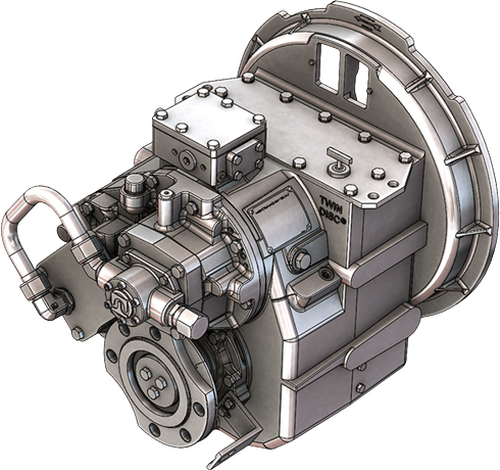

Twin Disc MGE-5126SC Hybrid Marine Transmission

Twin Disc has taken its field-proven marine transmissions and created the MGE Series of gearboxes. This design provides power from the motor immediately in both clockwise and counter-clockwise directions. All units are equipped with a bi-directional oil pump to provide lubrication no matter the direction of shaft rotation, making these units a perfect fit for serial hybrid and diesel-electric applications or any application requiring a direct power response with a ratio reduction.

Palmer Johnson is North America’s leading distributor for all of your Twin Disc MGE-5126SC hybrid marine transmission needs. Contact us today for further support with the Twin Disc MGE series of electric & hybrid marine transmission solutions.


Twin Disc MGE-5126SC Features & Benefits

  • Vertical offset, lightweight aluminum alloy housing
  • Bi-directional lubrication pump
  • Simplified design without a clutch
  • Same installation envelope as standard marine transmission
  • Same ratios as MGX-5126SC
  • Metric design (except for some power transmitting and plumbing components)
  • Marine survey society type approvals and unit certification available

Twin Disc MGE-5126SC Input Ratings

Reduction RatiosPleasure CraftLight DutyIntermediate DutyMedium DutyContinuous Duty
:1@ 2300 RPM@ 2300 RPM@ 2100 RPM@ 1800 RPM@ 1800 RPM
1.02, 1.12, 1.50
1.74, 2.04
673 kW
(902 hp)
629 kW
(843 hp)
504 kW
(676 hp)
394 kW
(528 hp)
358 kW
(480 hp)
2.54466 kW
(625 hp)
3.00578 kW
(775 hp)
540 kW
(724 hp)
451 kW
(605 hp)
361 kW
(484 hp)
328 kW
(440 hp)



Standard Equipment

  • SAE J617 housing no. 1
  • Input flange for freestanding installation
  • Oil strainer mounted

Optional Equipment

  • Adaptations for close coupled installation
  • Companion flange/bolts set
  • Mounted heat exchanger
  • Mounting brackets
  • Monitoring devices to customer’s specification
