Twin Disc has taken its field-proven marine transmissions and created the MGE Series of gearboxes. This design provides power from the motor immediately in both clockwise and counter-clockwise directions. All units are equipped with a bi-directional oil pump to provide lubrication no matter the direction of shaft rotation, making these units a perfect fit for serial hybrid and diesel-electric applications or any application requiring a direct power response with a ratio reduction.
Palmer Johnson is North America’s leading distributor for all of your Twin Disc MGE-5204SC hybrid marine transmission needs. Contact us today for further support with the Twin Disc MGE series of electric & hybrid marine transmission solutions.

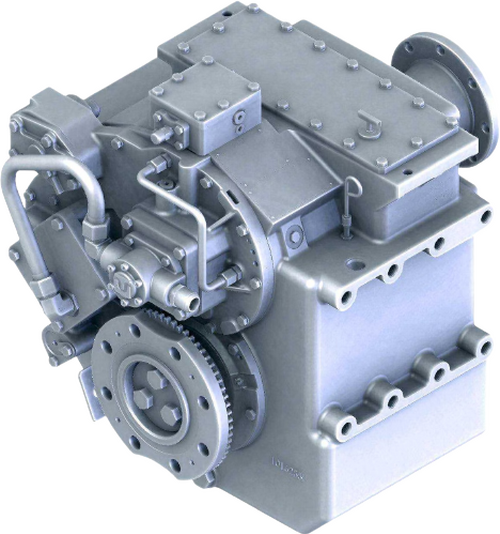

Twin Disc MGE-5204SC Features & Benefits
- Vertical offset, lightweight aluminum alloy housing
- Bi-directional lubrication pump
- Simplified design without a clutch
- Same installation envelope as standard marine transmission
- Same ratios as MGX-5204SC
- Metric design (except for some power transmitting and plumbing components)
- Marine survey society type approvals and unit certification available
Twin Disc MGE-5204SC Input Ratings
| Reduction Ratios | Pleasure Craft | Light Duty | Intermediate Duty | Medium Duty | Continuous Duty |
|---|---|---|---|---|---|
| :1 | @ 2300 RPM | @ 2300 RPM | @ 2100 RPM | @ 1800 RPM | @ 1800 RPM |
| 1.17, 1.33, 1.53 1.76, 2.03, 2.48, 2.92 | 1104 kW (1480 hp) | 979 kW (1313 hp) | 858 kW (1151 hp) | 716 kW (960 hp) | 716 kW (960 hp) |
| 3.48 | 1081 kW (1450 hp) | 837 kW (1122 hp) | 720 kW (966 hp) | 600 kW (805 hp) | 600 kW (805 hp) |
Standard Equipment
- Input flange for freestanding installation
- Oil strainer mounted
Optional Equipment
- Adaptations for close coupled installation
- Companion flange/bolts set
- Mounted heat exchanger
- Mounting brackets
- Monitoring devices to customer’s specification
