Twindisc 5061a

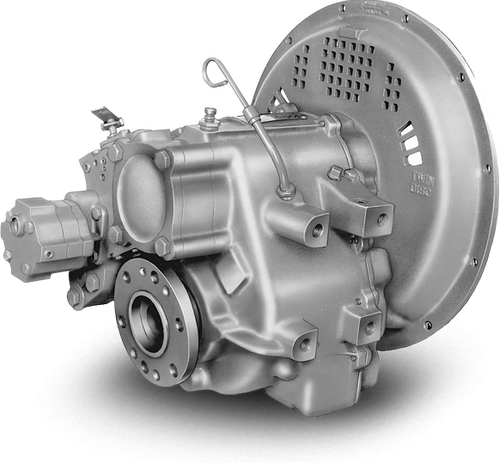

Twin Disc MG-5061 Series Marine Gears

The Twin Disc MG-5061 series consists of three models being the MG-5061SC, MG-5061A, & MG-5061RV (MG5061SC, MG5061A, & MG5061RV). Palmer Johnson is North America’s leading distributor for all of your MG-5061 marine gear transmission needs. Whether you are needing a replacement marine gear transmission, parts to do the repair yourself, or if you are wanting the factory trained technicians of PJ’s service department to rebuild your Twin Disc MG-5061 transmission, we’ve got you covered. Contact us today and you’ll be back up and running in no time!

Standard Equipment


  • Vertical offset, cast iron housing
  • Mechanical control valve
  • Oil strainer


  • Vertical offset, cast iron housing
  • 7° down angle on output shaft
  • Mechanical control valve
  • Oil strainer


  • Remote V-drive, cast iron housing
  • 7° down angle on output shaft
  • Input flange
  • Mechanical control valve
  • Oil strainer


  • SAE J617 no. 2 to SAE J617 no. 1 housing adaptor
  • SAE J617 housing no. 2
  • SAE J617 housing no. 3
  • SAE J617 housing no. 4
  • Flexible coupling for 14” flywheel (SAE J620 size 355)
  • Flexible coupling for 11.5” flywheel (SAE J620 size 290)
  • Flexible coupling for 10” flywheel (SAE J620 size 255)
  • Input flange for freestanding installation
  • Electric control valve (12VDC or 24 VDC)
  • Mechanical trolling valve
  • Oil cooler
  • Companion flange/ bolts set
  • Monitoring devices to customer’s specification
  • Mounting brackets
  • Live PTO:
    • SAE J744 size 82-2, 16-4 (SAE “A”, 2-bolt, max. 35 Nm)
    • SAE J744 size 101-2/4, 22-4 (SAE “B”, 2/4-bolt, max. 197 Nm)
