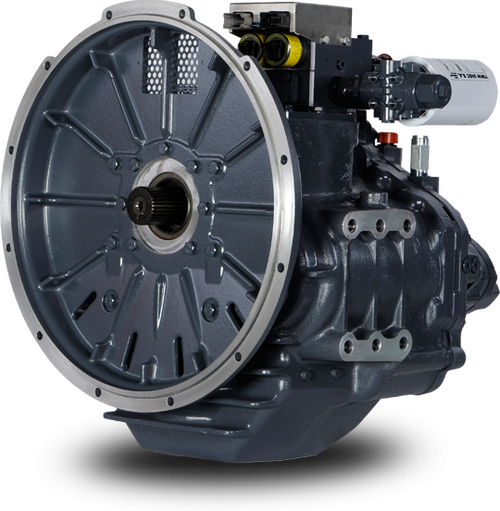

Twindisc mgx 5095

The Twin Disc MGX-5095 series consists of two models being the MGX-5095SC & MGX-5095A (MGX5095SC & MGX5095A). Palmer Johnson is North America’s leading distributor for all of your MGX-5095 marine gear transmission needs. Whether you are needing a replacement marine gear transmission, parts to do the repair yourself, or if you are wanting the factory trained technicians of PJ’s service department to rebuild your Twin Disc MGX-5095 transmission, we’ve got you covered. Contact us today and you’ll be back up and running in no time!


MGX-5095 SC & MGX-5095 A

Standard Equipment

  • Vertical offset, aluminum housing
  • Electric GP-valve with manual override
  • EC050 Profile module – interface for engagement signals
  • Oil strainer and oil filter

Options

  • SAE J617 housing no. 1
  • SAE J617 housing no. 2
  • Flexible coupling for 14” flywheel (SAE J620 size 355)
  • Flexible coupling for 11.5” flywheel (SAE J620 size 290)
  • Input flange for freestanding installation
  • Mechanical control valve
  • EC050 E-Troll module – interface for engagement & trolling signals
  • Harness with single point interface to Twin Disc EC300 control system
  • Oil cooler with thermostatic bypass valve
  • Companion flange/ bolts set
  • Monitoring devices to customer’s specification
  • Mounting brackets
  • Live PTO:
    • SAE J744 size 82-2, 16-4 (SAE “A”, 2-bolt, max. 58 Nm)
    • SAE J744 size 101-2, 22-4 (SAE “B”, 2-bolt, max. 209 Nm)
    • SAE J744 size 101-2, 25-4 (SAE “B-B”, 2-bolt, max. 338 Nm)
    • SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 592 Nm)
  • Hydraulic clutchable PTO:
    • SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 600 Nm)

Contact Us

Please be as specific as possible by including how we can assist along with any relevant information such as spec number, BOM number, or serial number.

Maximum 597 kW (800 hp) @ 2300 RPM [Pleasure Craft Duty]
