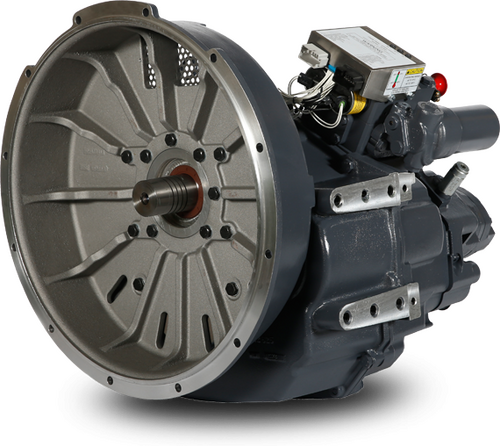

Twindisc mgx 5096

Palmer Johnson is North America’s leading distributor for all of your Twin Disc MGX-5096A (MGX5096A) marine gear transmission needs. Whether you are needing a replacement marine gear transmission, parts to do the repair yourself, or if you are wanting the factory trained technicians of PJ’s service department to rebuild your Twin Disc MGX-5096A transmission, we’ve got you covered. Contact us today and you’ll be back up and running in no time!


MGX-5096 A

Standard Equipment

  • Vertical offset, aluminum housing
  • 7° down angle on output shaft
  • Electric GP-valve with manual override
  • EC050 Profile module – interface for engagement signals
  • Oil strainer and oil filter

Options

  • SAE J617 housing no. 1
  • SAE J617 housing no. 2
  • Flexible coupling for 14” flywheel (SAE J620 size 355)
  • Flexible coupling for 11.5” flywheel (SAE J620 size 290)
  • Mechanical control valve
  • EC050 E-Troll module – interface for engagement & trolling signals
  • Harness with single point interface to Twin Disc EC300 control system
  • Oil cooler with thermostatic bypass valve
  • Companion flange/ bolts set
  • Monitoring devices to customer’s specification
  • Mounting brackets
  • Live PTO:
    • SAE J744 size 101-2, 25-4 (SAE “B-B”, 2-bolt, max. 338 Nm)
    • SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 592 Nm)
  • Hydraulic clutchable PTO:
    • SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 600 Nm)

Contact Us

Maximum 671 kW (900 hp) @ 2300 RPM [Pleasure Craft Duty]
