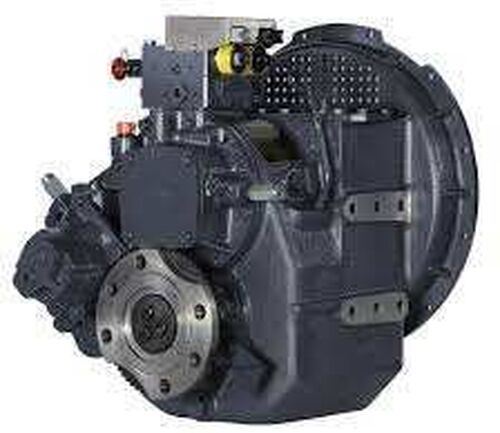

Twin Disc MGX-5114SC Marine Transmission
Palmer Johnson is North America’s leading distributor for all of your Twin Disc MGX-5114SC (MGX5114SC) marine gear transmission needs. Whether you are needing a replacement marine gear transmission, parts to do the repair yourself, or if you are wanting the factory trained technicians of PJ’s service department to rebuild your Twin Disc MGX-5114SC transmission, we’ve got you covered. Contact us today and you’ll be back up and running in no time!
- Vertical offset, aluminum housing
- SAE J617 housing no. 1
- Electric GP-valve with manual override
- EC050 Profile module – interface for engagement signals
- Oil strainer and oil filter
- Flexible coupling for 14” flywheel (SAE J620 size 355)
- Input flange for freestanding installation
- Mechanical control valve
- EC050 E-Troll module – interface for engagement & trolling signals
- Harness with single point interface to Twin Disc EC300 control system
- Oil cooler with thermostatic bypass valve
- Companion flange/ bolts set
- Monitoring devices to customer’s specification
- Mounting brackets
- Live PTO:
- SAE J744 size 82-2, 16-4 (SAE “A”, 2-bolt, max. 58 Nm)
- SAE J744 size 101-2, 22-4 (SAE “B”, 2-bolt, max. 209 Nm)
- SAE J744 size 101-2, 25-4 (SAE “B-B”, 2-bolt, max. 338 Nm)
- SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 592 Nm)
- Hydraulic clutchable PTO:
- SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 600 Nm)
