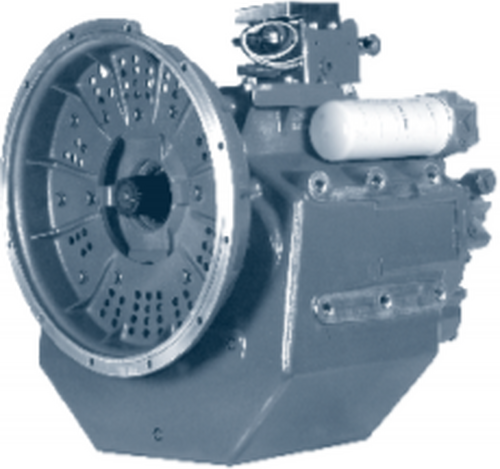

MGX 5147

The Twin Disc MGX-5147 series consists of three models being the MGX-5147SC, MGX-5147A, & MGX-5147RV (MGX5147SC, MGX5147A, & MGX5147RV). Palmer Johnson is North America’s leading distributor for all of your MGX-5147 marine gear transmission needs. Whether you are needing a replacement marine gear transmission, parts to do the repair yourself, or if you are wanting the factory trained technicians of PJ’s service department to rebuild your Twin Disc MGX-5147 transmission, we’ve got you covered. Contact us today and you’ll be back up and running in no time!


Standard Equipment

MGX-5147 SC & MGX-5147 A

  • SAE J617 housing no. 1
  • Flexible coupling for 14” flywheel (SAE J620 size 355)
  • Electric GP-valve with manual override
  • Profile module – interface for engagement signals
  • Oil strainer and oil filter

MGX-5147 RV

  • Input flange size GWB 587.50
  • Electric GP-valve with manual override
  • Profile module – interface for engagement signals
  • Oil strainer and oil filter

Options

  • SAE J617 housing no. 0
  • Flexible coupling for 18” flywheel (SAE J620 size 460)
  • E-Troll module – interface for engagement & trolling signals
  • Oil cooler with thermostatic bypass valve
  • Companion flange/ bolts set
  • Monitoring devices to customer’s specification
  • Mounting brackets
  • Live PTO – max. 593 Nm
    SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt)
  • Hydraulic Clutchable PTO – max. 641 Nm
    SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt)
  • Hydraulic Clutchable PTO – max. 641 Nm
    Shaft with key

Contact Us

Maximum 1142 kW (1531 hp) @ 2300 RPM [Pleasure Craft Duty]
