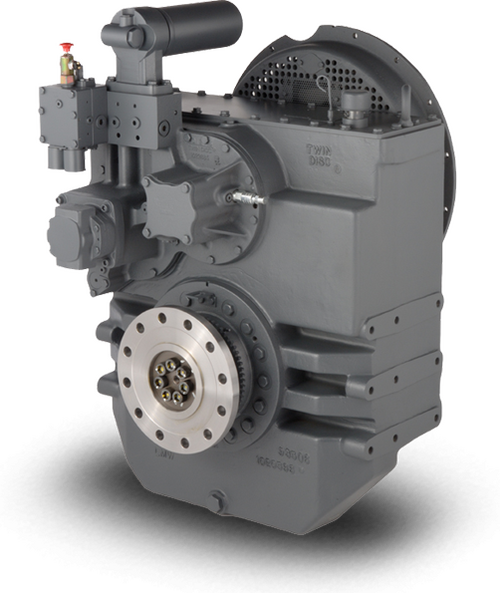

Twindisc mgx 5225

Palmer Johnson is North America’s leading distributor for all of your Twin Disc MGX-5225DC (MGX5225DC) marine gear transmission needs. Whether you are needing a replacement marine gear transmission, parts to do the repair yourself, or if you are wanting the factory trained technicians of PJ’s service department to rebuild your Twin Disc MGX-5225DC transmission, we’ve got you covered. Contact us today and you’ll be back up and running in no time!


MGX-5225 DC

Standard Equipment

  • Vertical offset, cast iron housing
  • Electric GP-valve with manual override
  • EC050 profile module - interface for engagement
    signals
  • Oil strainer and oil filter

Optional Equipment

  • Input hub for freestanding installation
  • SAE J617 housing no. 1 or no. 0
  • Flexible coupling for 14" or 18" flywheel (SAE J620 size 355 or 460)
  • EC050 E-Troll module - interface for engagement and trolling signals
  • Mechanical control valve
  • Companion flange/bolt set
  • Monitoring devices to customer's specification
  • Remote mounted electric trailing pump
  • Mounted oil cooler for raw or fresh water cooling
  • Mounting brackets
  • Weight (dry weight with standard equipment): 1046 kg

Contact Us

Please be as specific as possible by including how we can assist along with any relevant information such as spec number, BOM number, or serial number.

Maximum 716 kW (960 hp) @ 1800 RPM [Continuous Duty]
