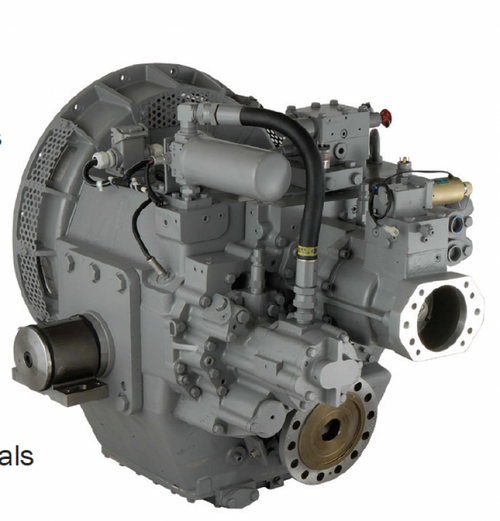

Twin Disc MGX 6620 A 200401 161521

Twin Disc MGX-6620 Series Marine Gears

The Twin Disc MGX-6620 series consists of three models being the MGX-6620SC, MGX-6620A, & MGX-6620RV (MGX6620SC, MGX6620A, & MGX6620RV). Palmer Johnson is North America’s leading distributor for all of your MGX-6620 marine gear transmission needs. Whether you are needing a replacement marine gear transmission, parts to do the repair yourself, or if you are wanting the factory trained technicians of PJ’s service department to rebuild your Twin Disc MGX-6620 transmission, we’ve got you covered. Contact us today and you’ll be back up and running in no time!






Standard Equipment

MGX-6620 SC & MGX-6620 A

  • SAE J617 housing no. 0
  • Flexible coupling for 18" flywheel (SAE J620 size 460)
  • Electric GP-valve with manual override
  • EC050 Profile module – interface for engagement signals
  • Integral oil cooler for raw water cooling
  • Oil strainer and oil filter

MGX-6620 RV

  • Input flange size GWB 587.50
  • Electric GP-valve with manual override
  • EC050 Profile module – interface for engagement signals
  • Integral oil cooler for raw water cooling
  • Oil strainer and oil filter

Options

  • Flexible coupling for 14” flywheel (SAE J620 size 355)
  • Flexible coupling for 18” flywheel (SAE J620 size 460)
  • Input flange for freestanding installation
  • EC050 E-Troll module – interface for engagement & trolling signals
  • Harness with single point interface to Twin Disc EC300 control system
  • Output shaft driven trailing pump
  • Companion flange/ bolts set
  • Monitoring devices to customer’s specification
  • Mounting brackets
  • Live PTO
    • SAE J744 size 101-2, 25-4 (SAE “B-B”, 2-bolt) – max. 337 Nm
    • SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt) – max. 600 Nm
  • Hydraulic Clutchable PTO
    • SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt) – max. 600 Nm
  • Secondary live PTO for power steering pumps
    • SAE J744 size 101-2, 22-4 (SAE “B”, 2-bolt) – max. 75 Nm or
    • SAE J744 size 82-2, 16-4 (SAE “A”, 2-bolt) – max. 75 Nm
