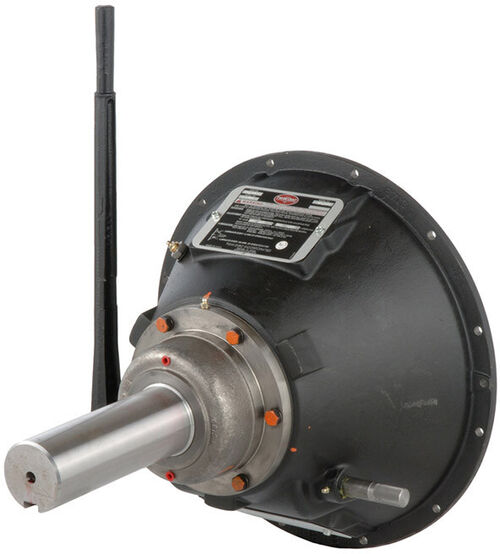

The IBF series PTO is specially designed for high inertia applications with frequent engagements. The IB214P (IB214, IBF214, IB214P0, IBF214P0, IB214OP0, IBF214OP0, IB214P1, IBF214P1, IB214OP1, IBF214OP1) power take-off is used in a wide array of applications with the most common being vertical shaft impact crushers, tub grinders, and rock crushers.
Palmer Johnson Power Systems is North America’s leading Twin Disc distributor with over 40 years of experience servicing the Twin Disc product line. We have an expansive inventory of replacement parts and complete units for the IB214P series PTO’s. In addition to our inventory, we have product experts that can troubleshoot your issues and offer sound solutions as well as factory-trained technicians that can repair your PTO and get you back up and running quickly. No matter the need for your IB214P power take-off, we are here to help. Contact us today!
Key Features:
- Tapered roller main bearings
- Optional sintered iron plates
- Optional ball bearing throw out
- Built-in hex nut
- Creates suitable application torque capacity
- More suitable for side load applications
- Allow for more frequent engagements
- Creates 25% higher torque capacity
- Eases adjustment verification
- Authorized Distributor
- Genuine Parts
- Service and Support
Active BOM & Assembly Numbers: IB214P002, IB214P106, IB214P109, IB214P110, IB214P111, IB214P112, IB214P113
Legacy BOM & Assembly Numbers: IB214P001, IB214P101, IB214P102, IB214P103, IB214P104, IB214P105, IB214P111
OEM Assembly Numbers:
- IB214P101 equals Cummins Engine Company P/N 3000354
- IB214P104 equals Morbark P/N 24541-550 (24541550)
Maximum Input Torque (lb-ft) Class I - 1620
Clutch Maximum HP rating
- Class II - 395
- Class III - 264
- Class IV - 197
