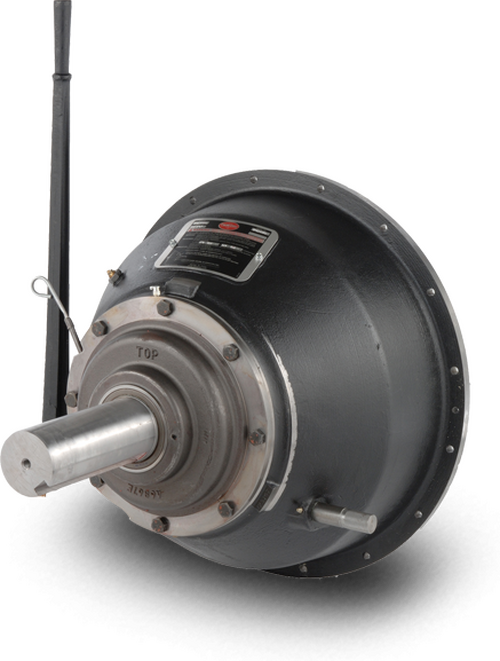

Twin Disc SP318 P PTO

The SP318P series PTO is suitable for both inline and side load applications. The SP318P (SP318, SP318P0) power take-off is used in a wide array of applications with the most common being sand dredges, irrigation pumps, crane & hoisting, metal shredders, recycling equipment, jaw crushers, and compressors.

Palmer Johnson Power Systems is North America’s leading Twin Disc distributor with over 40 years of experience servicing the Twin Disc product line. We have an expansive inventory of replacement parts and complete units for the SP318P series PTO’s. In addition to our inventory, we have product experts that can troubleshoot your issues and offer sound solutions as well as factory trained technicians that can repair your PTO and get you back up and running quick. No matter the need for your SP318P power take-off, we are here to help. Contact us today!



Key Features

  • Tapered roller main bearings
  • Optional sintered iron plates
  • Optional ball bearing throw out
  • Built-in hex nut
  • Creates suitable application torque capacity
  • More suitable for side load applications
  • Allows for more frequent engagements
  • Creates 25% higher torque capacity
  • Eases adjustment verification

Contact Us

Please be as specific as possible by including how we can assist along with any relevant information such as spec number, BOM number, or serial number.

Active Twin Disc BOM & Assembly Numbers: SP318P009, SP318P012, SP318P014, SP318P018, SP318P019, SP318P020, SP318P021, SP318P022, SP318P023

Legacy Twin Disc BOM & Assembly Numbers: SP318P001, SP318P002, SP318P003, SP318P004, SP318P005, SP318P006, SP318P009, SP318P010, SP318P013, SP318P014, SP318P015, SP318P016, SP318P017

OEM Assembly Numbers:

  • SP318P001 equals Cummins Engine Company P/N 3002097
  • SP318P003 equals CAT P/N 2W-4912, 2W4912
  • SP318P010 equals Morbark P/N 24541-901, 24541901
  • SP318C001 equals Cotta P/N 80VX544
  • SP318C002 equals Cotta P/N 80VX1012, Morbark P/N 24541-904, 24541904
  • SP318C003 equals Terex P/N 70012123, Vermeer P/N 154820001, Bandit P/N 900-6914-08, 900691408, Trelan Manufacturing P/N 00CLU-398, 00CLU398
  • SP318C005 equals Morbark P/N 24542-945, 24542945
  • SP318C006 equals Morbark P/N 24542-913, 24542913
  • SP318C007 equals Morbark P/N 24541-907, 24541907

Maximum Input Torque (lb-ft) Class I - 6000

Clutch Maximum HP Rating

  • Class II - 933
  • Class III - 622
  • Class IV - 467
