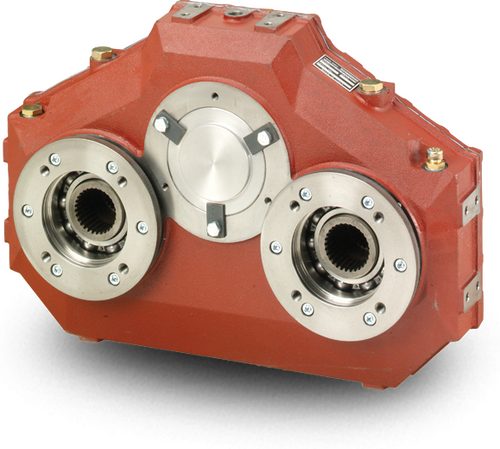

Twin Disc Technodrive AM232 Pump Drive
Maximum Input Power 565 kW (758 hp)
1:1 ratio @ 2400 rpm
- Cast iron housings
- Shaved gears
- Ball bearings
- Case hardened shafts
- Viton seals on input shaft
- Output rotation opposite the direction of input rotation
- Gear ratios identical on all outputs
- Maximum input torque based on theoretically unlimited gear life and a minimum L10 bearing life of 10,000 hours
