Wichita modevo

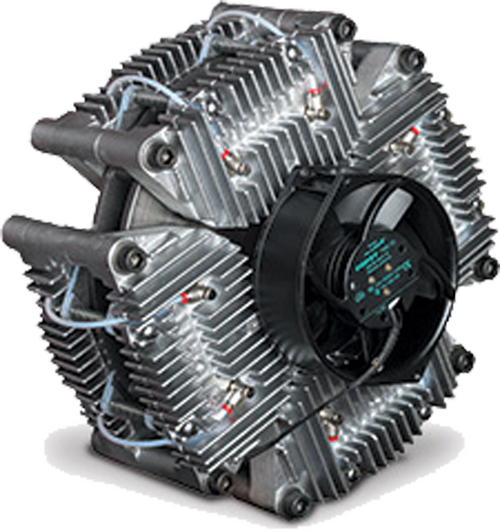

Palmer Johnson is an authorized distributor for the Wichita ModEvo Brakes. The Wichita ModEvo Brake series is a tension brake that is designed to ensure maximum strength with minimum weight. The ModEvo Brake is optimized to make best use of the cooling air available at slow speeds, and being bidirectional, it achieves high heat dissipation capacity in either rotational direction. The line of Wichita ModEvo Tension Brakes are offered in five sizes: 250 mm, 300 mm, 350mm, 400 mm, and 450 mm in diameter.

Whether you are needing genuine Wichita parts, service manuals or parts lists, or you are wanting one of our factory trained technicians to repair your Wichita ModEvo Brake; we’ve got you covered. Contact the Wichita Brake experts today!

The Wichita ModEvo Brakes are found in a wide array of industries including agitators and air movement pumps.

Common Model Number
Wichita Clutch ModEvo 250/1
Wichita Clutch ModEvo 250/2
Wichita Clutch ModEvo 250/4
Wichita Clutch ModEvo 250/6
Wichita Clutch ModEvo 300/1
Wichita Clutch ModEvo 300/2
Wichita Clutch ModEvo 300/4
Wichita Clutch ModEvo 300/6
Wichita Clutch ModEvo 300/8
Wichita Clutch ModEvo 350/1
Wichita Clutch ModEvo 350/2
Wichita Clutch ModEvo 350/4
Wichita Clutch ModEvo 350/6
Wichita Clutch ModEvo 350/8
Wichita Clutch ModEvo 350/10
Wichita Clutch ModEvo 400/1
Wichita Clutch ModEvo 400/2
Wichita Clutch ModEvo 400/4
Wichita Clutch ModEvo 400/6
Wichita Clutch ModEvo 400/8
Wichita Clutch ModEvo 400/10
Wichita Clutch ModEvo 400/12
Wichita Clutch ModEvo 450/1
Wichita Clutch ModEvo 450/2
Wichita Clutch ModEvo 450/4
Wichita Clutch ModEvo 450/6
Wichita Clutch ModEvo 450/8
Wichita Clutch ModEvo 450/10
Wichita Clutch ModEvo 450/12
Wichita Clutch ModEvo 450/14

Contact Us

Please be as specific as possible by including how we can assist along with any relevant information such as spec number, BOM number, or serial number.

Wichita ModEvo Brake Product Features

  • Modular design for maximum flexibility of operation
  • Disc specially designed for good heat dissipation at low and high speeds
  • Fan cooling is optional for even higher heat capacity
  • Brake module is common to all disc sizes and contains two sets of air applied rolling diaphragm actuators.
  • Three actuator sizes coupled with either standard or low-coefficient friction pads gives a wide range of flexibility and selection
