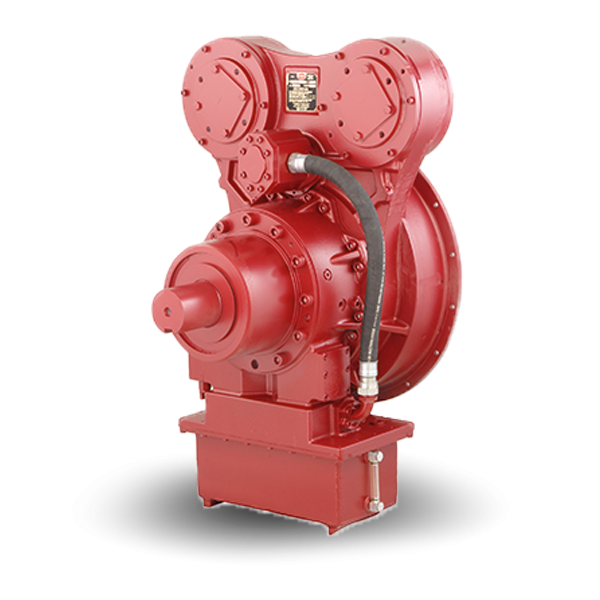

Twin Disc HP1200 Hydraulic PTO

  • Hydraulically actuated and self-adjusting wet clutch
  • Suitable for in-line and side-load applications
  • Advanced control system for smooth engagement
  • Remote actuation via J1939 or switch input
  • No pilot bearing
  • High side load capability
  • Maximum power rating 1243 HP @1800 rpm
  • Two towers with two pump pads each
    • 400 HP maximum capacity per tower
    • 550 HP maximum capacity for both towers
  • Available pump pads: SAE “A”, SAE “B”, SAE “C”, SAE”D”, SAE “E”
  • Pump tower rotatable by 0 degrees/45 degrees/90 degrees CW/CCW
  • Optional 0.86:1 speed increase on pump tower
  • SAE #0 input housing
  • SAE 460 (18”) input coupling
  • Optional integrated reservoir
  • Standard charge/lube pump included
