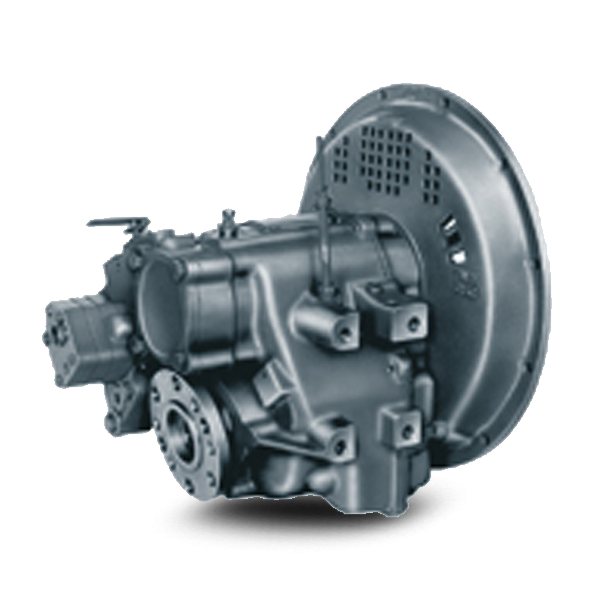

The Twin Disc MG-5050 series consists of three models being the MG-5050SC, MG-5050RV & MG-5055A (MG5050SC, MG5050RV & MG5050A). Palmer Johnson is North America’s leading distributor for all of your MG-5050 marine gear transmission needs. Whether you are needing a replacement marine gear transmission, parts to do the repair yourself, or if you are wanting the factory trained technicians of PJ’s service department to rebuild your Twin Disc MG-5050 transmission, we’ve got you covered. Contact us today and you’ll be back up and running in no time!
Standard Equipment
MG-5050 SC & MG-5050 A
- 11.5” torsional input couplings
- Clutch fill rate-of-rise valve
- Oil strainer
- SAE housings no. 3 and 2
MG-5050 RV
- Remote V-drive, aluminum housing
- 10° down angle on output shaft
- Input flange
- Mechanical control valve
- Oil strainer
Options
- SAE J617 no. 2 to SAE J617 no. 1 housing adaptor
- SAE J617 housing no. 2
- SAE J617 housing no. 3
- SAE J617 housing no. 4
- Flexible coupling for 14” flywheel (SAE J620 size 355)
- Flexible coupling for 11.5” flywheel (SAE J620 size 290)
- Flexible coupling for 10” flywheel (SAE J620 size 255)
- Electric control valve (12VDC or 24 VDC)
- Mechanical trolling valve
- Oil cooler
- Companion flange/ bolts set
- Monitoring devices to customer’s specification
- Mounting brackets
- Live PTO:
- SAE J744 size 82-2, 16-4 (SAE “A”, 2-bolt, max. 35 Nm)
- SAE J744 size 101-2/4, 22-4 (SAE “B”, 2/4-bolt, max. 197 Nm)
