Twindisc mg 5090a

Palmer Johnson is North America’s leading distributor for all of your Twin Disc MG-5090A (MG5090A) marine gear transmission needs. Whether you are needing a replacement marine gear transmission, parts to do the repair yourself, or if you are wanting the factory trained technicians of PJ’s service department to rebuild your Twin Disc MG-5090A transmission, we’ve got you covered. Contact us today and you’ll be back up and running in no time!

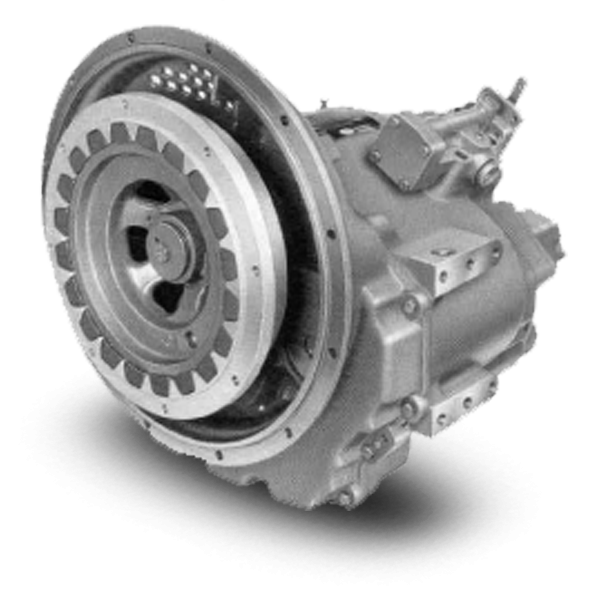

MG-5090 A

Standard Equipment

  • Vertical offset, cast iron housing
  • Mechanical control valve
  • Oil strainer

Options

  • SAE J617 housing no. 1
  • Flexible coupling for 14” flywheel (SAE J620 size 355)
  • Electric control valve (12VDC or 24 VDC)
  • Mechanical trolling valve
  • Oil cooler with thermostatic bypass valve
  • Companion flange/ bolts set
  • Monitoring devices to customer’s specification
  • Mounting brackets
  • Live PTO:
    • SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 592 Nm)
  • Hydraulic clutchable PTO:
    • SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 415 Nm)

Contact Us

Please be as specific as possible by including how we can assist along with any relevant information such as spec number, BOM number, or serial number.

Maximum 447 kW (600 hp) @ 2600 RPM [Pleasure Craft duty]
