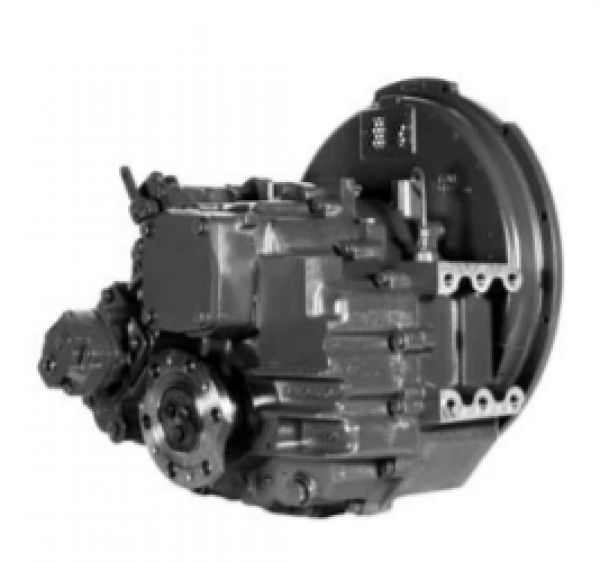

Twin Disc MG-5095 Series Marine Gears

The Twin Disc MG-5095 series consists of three models being the MG-5095SC, MG-5095A, & MG-5095RV (MG5095SC, MG5095A, & MG5095RV). Palmer Johnson is North America’s leading distributor for all of your MG-5095 marine gear transmission needs. Whether you are needing a replacement marine gear transmission, parts to do the repair yourself, or if you are wanting the factory trained technicians of PJ’s service department to rebuild your Twin Disc MG-5095 transmission, we’ve got you covered. Contact us today and you’ll be back up and running in no time!
Standard Equipment
MG-5095 SC & MG-5095 A
- SAE J617 housing no. 1
- Flexible coupling for 14” flywheel (SAE J620 size 355)
- Mechanical control valve
- Oil strainer
MG-5095 RV
- Input flange size GWB 587.20
- Mechanical control valve
- Oil strainer
Options
- SAE J617 housing no. 2
- Flexible coupling for 11.5” flywheel (SAE J620 size 290)
- Electric control valve (12 VDC or 24 VDC)
- Trolling valve (mechanical or electrical)
- Oil filter mounted
- Oil cooler with thermostatic bypass valve
- Companion flange/bolts set
- Monitoring devices to customer’s specification
- Hydraulic Clutchable PTO – max. 641 Nm
- Mounting brackets
- Live PTO – max. 593 Nm
SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt) - Hydraulic Clutchable PTO – max. 415 Nm
SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt) - Hydraulic Clutchable PTO – max. 415 Nm
Shaft with key
