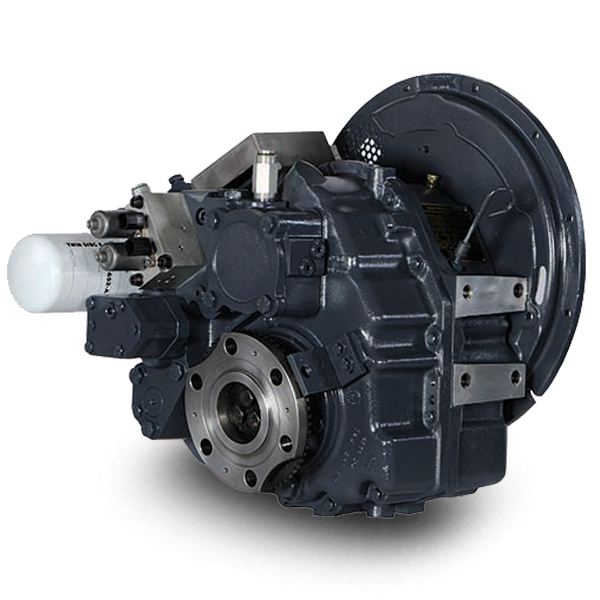

Twin Disc MGX-5065 Series Marine Gears

The Twin Disc MGX-5065 series consists of two models being the MGX-5065SC & MGX-5065A (MGX5065SC & MGX5065A). Palmer Johnson is North America’s leading distributor for all of your MGX-5065 marine gear transmission needs. Whether you are needing a replacement marine gear transmission, parts to do the repair yourself, or if you are wanting the factory trained technicians of PJ’s service department to rebuild your Twin Disc MGX-5065 transmission, we’ve got you covered. Contact us today and you’ll be back up and running in no time!
Standard Equipment
MGX-5065 SC
- Vertical offset, aluminum housing
- Electric GP-valve with manual override
- EC050 Profile module
– interface for engagement signals - Oil strainer and oil filter
MGX-5065 A
- Vertical offset, aluminum housing
- 7° down angle on output shaft
- Electric GP-valve with manual override
- EC050 Profile module
– interface for engagement signals - Oil strainer and oil filter
Options
- SAE J617 housing no. 1
- SAE J617 housing no. 2
- SAE J617 housing no. 3
- Flexible coupling for 14” flywheel (SAE J620 size 355)
- Flexible coupling for 11½” flywheel (SAE J620 size 290) X X
- Input flange for freestanding installation
- EC050 E-Troll module – interface for engagement & trolling signals
- Harness with single point interface to Twin Disc EC300 control system
- Oil cooler with thermostatic bypass valve
- Companion flange/ bolts set
- Monitoring devices to customer’s specification
- Mounting brackets
- Live PTO
SAE J744 size 82-2, 16-4 (SAE “A”, 2-bolt) – max. 58 Nm
SAE J744 size 101-2/4, 22-4 (SAE “B”, 2/4-bolt) – max. 197 Nm
SAE J744 size 101-2/4, 25-4 (SAE “B-B”, 2/4-bolt) – max. 337 Nm
