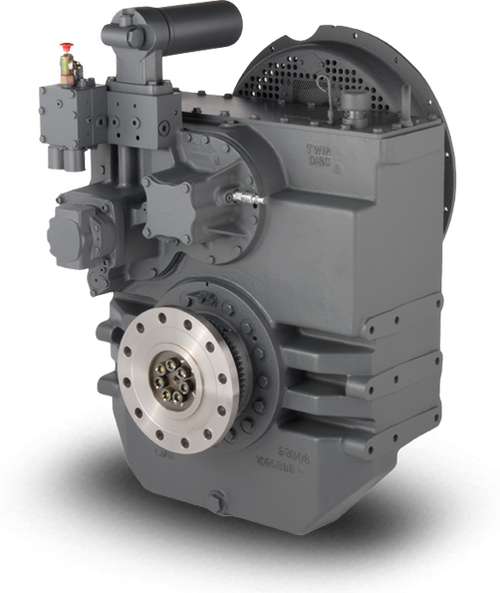

Twin Disc MGX-5222DC Marine Transmission

Palmer Johnson is North America’s leading distributor for all of your Twin Disc MGX-5222DC (MGX5222DC) marine gear transmission needs. Whether you are needing a replacement marine gear transmission, parts to do the repair yourself, or if you are wanting the factory trained technicians of PJ’s service department to rebuild your Twin Disc MGX-5222DC transmission, we’ve got you covered. Contact us today and you’ll be back up and running in no time!


MGX-5222 DC

Standard Equipment

  • Vertical offset, nodular iron housing
  • Electric GP-valve with manual override
  • EC050 Profile module – interface for engagement signals
  • Oil strainer and oil filter

Options

  • SAE J617 housing no. 1
  • SAE J617 housing no. 0
  • Flexible coupling for 14” flywheel (SAE J620 size 355)
  • Flexible coupling for 14” flywheel (SAE J620 size 355)
  • Input flange for freestanding installation
  • Mechanical control valve
  • EC050 E-Troll module – interface for engagement & trolling signals
  • Harness with single point interface to Twin Disc EC300 control system
  • Oil cooler for raw and fresh water cooling
  • Companion flange/ bolts set
  • Monitoring devices to customer’s specification
  • Mounting brackets
  • Live PTO:
    • SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 592 Nm)
    • SAE J744 size 127-4, 38-4 (SAE “C-C”, 4-bolt, max. 1187 Nm)
  • Hydraulic clutchable PTO:
    • SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 592 Nm)
    • SAE J744 size 127-4, 38-4 (SAE “C-C”, 4-bolt, max. 1186 Nm)
