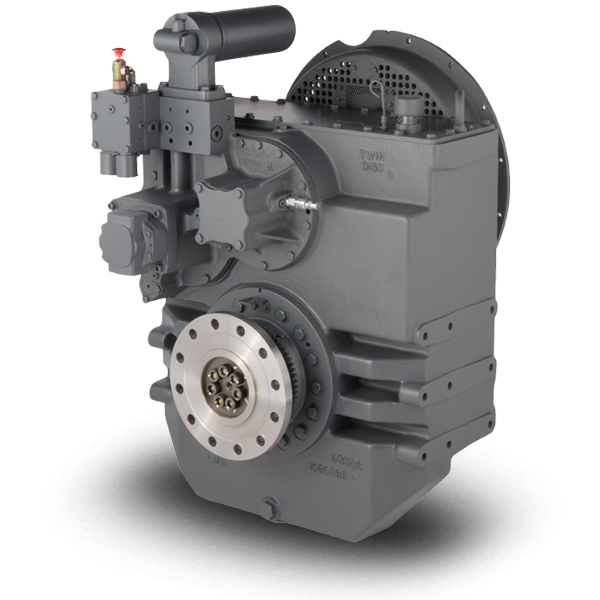

Twin Disc MGX-5225DC Marine Gear

Palmer Johnson is North America’s leading distributor for all of your Twin Disc MGX-5225DC (MGX5225DC) marine gear transmission needs. Whether you are needing a replacement marine gear transmission, parts to do the repair yourself, or if you are wanting the factory trained technicians of PJ’s service department to rebuild your Twin Disc MGX-5225DC transmission, we’ve got you covered. Contact us today and you’ll be back up and running in no time!
MGX-5225 DC
Standard Equipment
- Vertical offset, cast iron housing
- Electric GP-valve with manual override
- EC050 profile module - interface for engagement
signals - Oil strainer and oil filter
Optional Equipment
- Input hub for freestanding installation
- SAE J617 housing no. 1 or no. 0
- Flexible coupling for 14" or 18" flywheel (SAE J620 size 355 or 460)
- EC050 E-Troll module - interface for engagement and trolling signals
- Mechanical control valve
- Companion flange/bolt set
- Monitoring devices to customer's specification
- Remote mounted electric trailing pump
- Mounted oil cooler for raw or fresh water cooling
- Mounting brackets
- Weight (dry weight with standard equipment): 1046 kg
