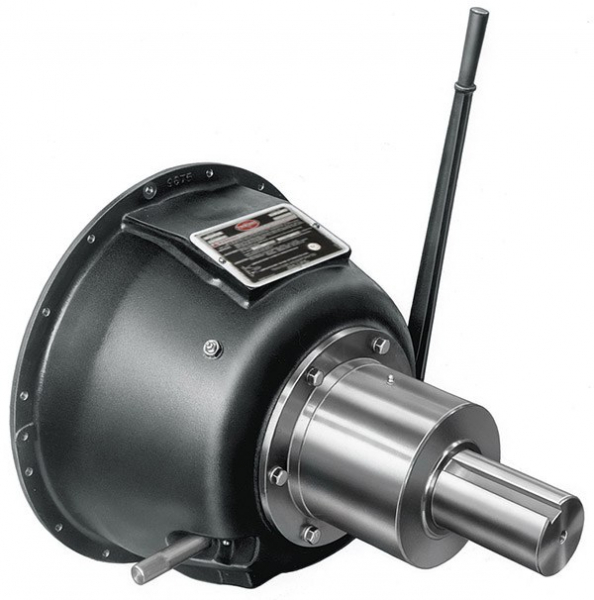

Twin Disc IB314P PTO
The IBF series PTO is specially designed for high inertia applications with frequent engagements. The IB314P (IB314, IBF314, IB314P0, IBF314P0, IB314P1, IBF314P1, IB314OP0, IBF314OP0, IB314OP1, IBF314OP1) power take-off is used in a wide array of applications with the most common being vertical shaft impact crushers, tub grinders, and rock crushers.
Palmer
Johnson Power Systems is North America’s leading Twin Disc distributor with
over 40 years of experience servicing the Twin Disc product line. We have an
expansive inventory of replacement parts and complete units for the IB314P series PTO’s. In addition to our inventory, we have product experts that can
troubleshoot your issues and offer sound solutions as well as factory trained
technicians that can repair your PTO and get you back up and running quick. No
matter the need for your IB314P power take-off, we are here to help. Contact us
today!
Key Features
- Tapered roller main bearings
- Sealed-for-life pilot bearing
- Ventilated center plates and drive ring
- Optional sintered iron plates
- Built-in hex nut
- More suitable for side load applications
- Less maintenance
- Improved heat dissipation
- Creates 25% higher torque capacity
- Eases adjustment verification
-
Notes
Active BOM & Assembly Numbers: IB314P003, IB314P004, IB314P104, IB314P117, IB314P126, IB314P127, IB314P128, IB314P129, IB314P130, IB314P131, IB314P132, IB314P133, IB314P134, IB314P135, IB314P136, IB314P137, IB314P138, IB314P139, IB314P140, IB314P141, IB314P142, IB314P143
Legacy BOM & Assembly Numbers: IB314P001, IB314P002, IB314P101, IB314P102, IB314P103, IB314P105, IB314P106, IB314P107, IB314P108, IB314P109, IB314P110, IB314P111, IB314P112, IB314P113, IB314P114, IB314P115, IB314P116, IB314P118, IB314P119, IB314P120, IB314P121, IB314P122, IB314P123, IB314P124, IB314P125,
OEM Assembly Numbers:
- IB314P101 equals CAT P/N 2W4906, 2W-4906
- IB314P102 equals CAT P/N 2W4908, 2W-4908
- IB314P107 equals Cummins Engine Company P/N 3000353
- IB314P108 equals Cummins Engine Company P/N 3002101
- IB314P109 equals Morbark P/N 24541-605, 24541605
- IB314P117 equals CAT P/N 3N8613
- IB314P120 & IB314P141 equals Cummins Engine Company P/N 3170133
- IB314P122 equals Morbark P/N 24541-607, 24541607
- IB314C001 equals Cotta P/N 80VX1638
- IB314C002 equals Epiroc P/N 52247004
- IB314C005 equals Morbark P/N 24541-634
Maximum Input Torque (lb-ft) Class I - 3040
Clutch Maximum HP rating
- Class II - 741
- Class III - 494
- Class IV - 371
