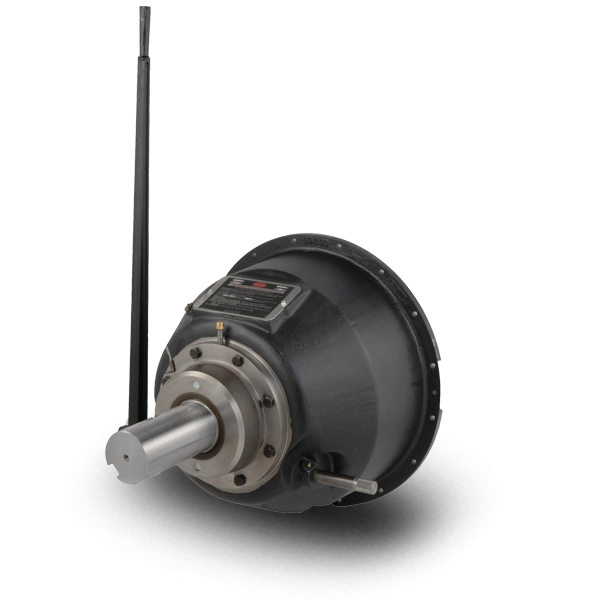

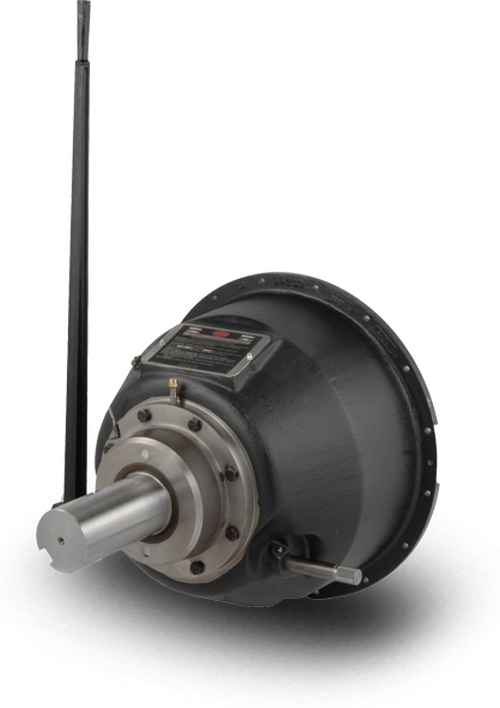

Twin Disc IB318P PTO
The IBF series PTO is specially designed for high inertia applications with frequent engagements. The IB318P (IB318, IBF318, IB318OP0, IBF318OP0, IB318P0, IBF318P0) power take-off is used in a wide array of applications with the most common being vertical shaft impact crushers, tub grinders, and rock crushers.
Palmer Johnson Power Systems is North America’s leading Twin Disc distributor with over 40 years of experience servicing the Twin Disc product line. We have an expansive inventory of replacement parts and complete units for the IB318P series PTO’s. In addition to our inventory, we have product experts that can troubleshoot your issues and offer sound solutions as well as factory trained technicians that can repair your PTO and get you back up and running quick. No matter the need for your IB318P power take-off, we are here to help. Contact us today!
Key Features
- Sealed-for-life pilot bearing
- Ventilated center plates and drive ring
- Optional sintered iron plates
- Built-in hex nut
- Less maintenance
- Improved heat dissipation
- Creates 25% higher torque capacity
- Eases adjustment verification
-
Notes
Active BOM & Assembly Numbers: IB318P004, IB318P007, IB318P008, IB318P017, IB318P018, IB318P019, IB318P020, IB318P022, IB318P023
Legacy BOM & Assembly Numbers: IB318P001, IB318P002, IB318P005, IB318P006, IB318P010, IB318P011, IB318P012, IB318P013, IB318P015
OEM Assembly Numbers:
- IB318P002 equals Cummins Engine Company P/N 3201375
- IB318P005 equals Cummins Engine Company P/N 3065048, Morbark P/N 24541-655, 24541655
- IB318P007 equals CAT P/N 4P3068 for a CAT 3412DIT engine
- IB318P008 is used on a CAT 3412DIT engine
- IB318C001 equals Morbark P/N 24541-661, 24541661
- IB318C005, & IB318C002 equals Morbark P/N 24541-727, 24541727
- IB318C006 & IB318C003 equals Morbark P/N 24541-768, 24541768
Maximum Input Torque (lb-ft) Class I - 7500
Clutch Maximum HP rating
- Class II - 1224
- Class III - 816
- Class IV - 612
