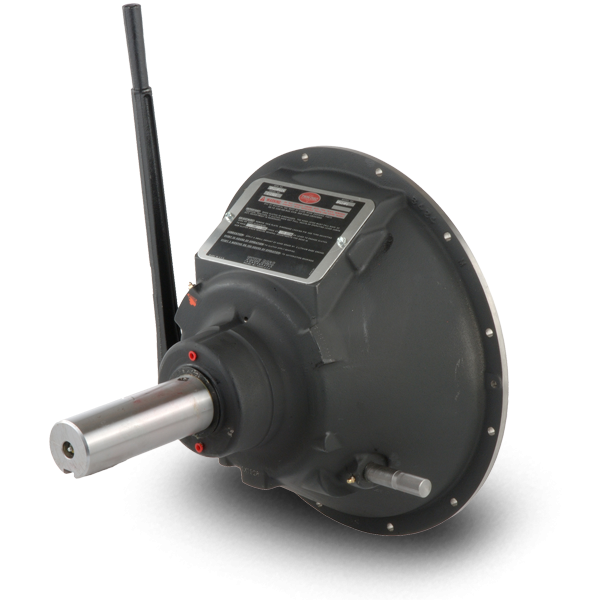

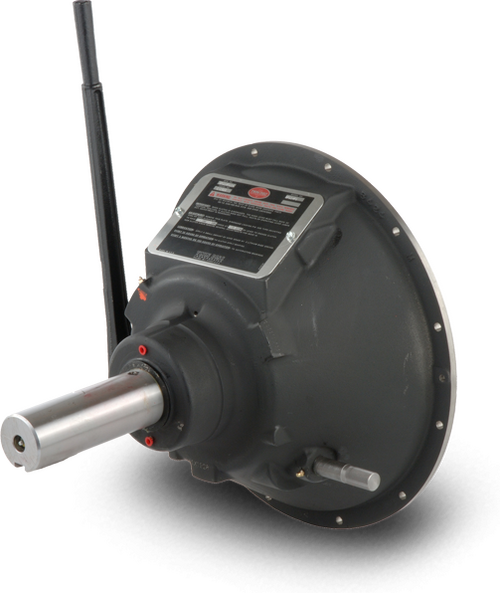

Twin Disc SP114P PTO
The SP114P series PTO is suitable for both inline and side load applications. The SP114P (SP114, SP114P0, SP114P1) power take-off is used in a wide array of applications with the most common being mud pumps, manure pumps, injection pumps, irrigation pumps, oil & gas industry, flood control, wood chippers, tub grinders, conveyors, compressors, blowers, fans, and grain dryers.
Palmer
Johnson Power Systems is North America’s leading Twin Disc distributor with
over 40 years of experience servicing the Twin Disc product line. We have an
expansive inventory of replacement parts and complete units for the SP114P series PTO’s. In addition to our inventory, we have product experts that can
troubleshoot your issues and offer sound solutions as well as factory trained
technicians that can repair your PTO and get you back up and running quick. No
matter the need for your SP114P power take-off, we are here to help. Contact us
today!
Key Features
- Tapered roller main bearings
- Optional sintered iron plates
- Optional ball bearing throw out
- Built-in hex nut
- Creates suitable application torque capacity
- More suitable for side load applications
- Allows for more frequent engagements
- Creates 25% higher torque capacity
- Eases adjustment verification
-
Notes
Active Twin Disc BOM & Assembly Numbers: SP114P006, SP114P112, SP114P102, SP114P103, SP114P104, SP114P109, SP114P112, SP114P114, SP114P115, SP114P116, SP114P117, SP114P118,
Legacy Twin Disc BOM & Assembly Numbers: SP114P001, SP114P101, SP114P103, SP114P105, SP114P106, SP114P107, SP114P108, SP114P110, SP114P111, SP114P113
OEM Assembly Numbers:
- SP114P101 & SP114P112 equals Morbark P/N 24542-203, 24542-205 24542203, 24542205, Bandit P/N 900-6960-16, 900696016
- SP114P102 equals Cummins Engine Company P/N 119284
- SP114P103 equals CAT P/N 3N-9097, 3N9097
- SP114P105 equals CAT P/N 2N-7078, 2N7078
- SP114P107 equals American Hoist P/N 305601
- SP114C002 equals Funk & John Deere P/N 4003839, Bandit P/N 904-0003-15, 904000315
