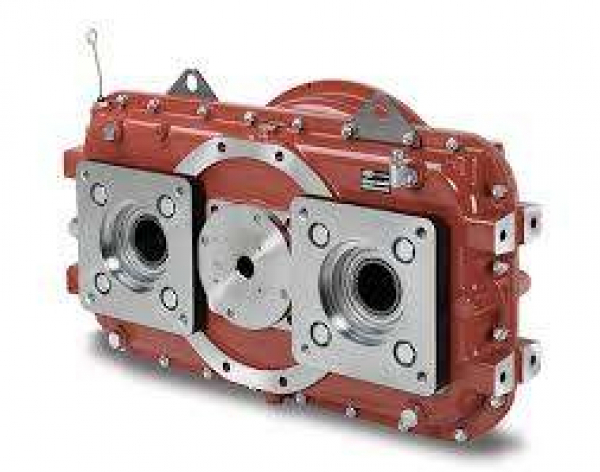

Twin Disc AM270 Pump Drive

Maximum Input Power 700 kW (939 hp)
1.00:1 ratio @ 2600 rpm

• Cast iron housings
• Case hardened and ground spur gears
• Ball bearings
• Case hardened shafts
• Viton seals on input shaft
• Output rotation opposite the direction of input rotation
• Gear ratios identical on all outputs
• Modular Design
