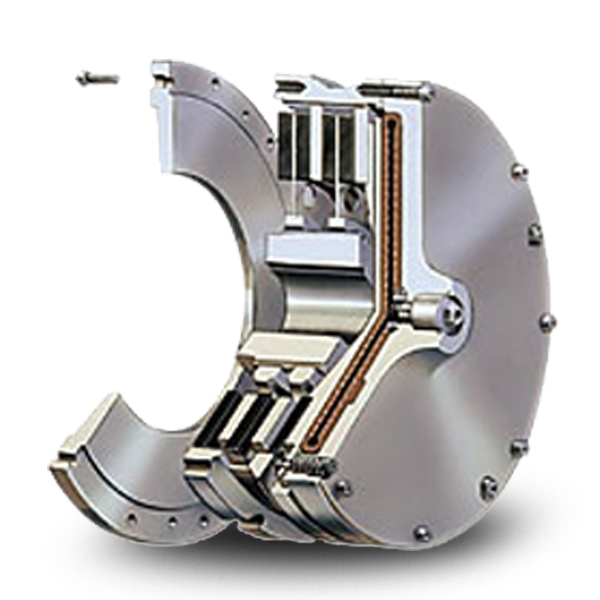

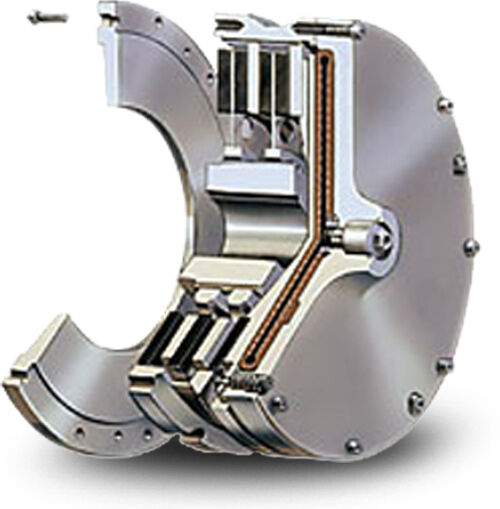

Wichita High Torque Air Clutches

Palmer Johnson is an authorized distributor for the Wichita High Torque Clutches These clutches provide the highest torque to size ratios of any Wichita Clutch. The Wichita High Torque Clutches provide smooth controlled starts and stops and are designed for minimum power loss due to low rotating inertia. Whether you are needing genuine Wichita parts, service manuals or parts lists, or you are wanting one of our factory trained technicians to repair your Wichita High Torque Clutch, we’ve got you covered. Contact the Wichita Clutch experts today!


The Wichita High Torque Clutches are found in a wide array of industries including lumber processing, material handling, metal production, metal forming, brick manufacturing, canning & bottling machines, air movement pumps, and agitators.


    Wichita High Torque Clutch Common Model & Assembly Numbers

    Common Model NumberAlternate Model NumberAssembly Number
    Wichita Clutch HTC 104Wichita Clutch ATD 104 HTC6-004-100-400-0
    Wichita Clutch HTC 204Wichita Clutch ATD 204 HTC6-004-200-802-0
    Wichita Clutch HTC 106Wichita Clutch ATD 106 HTC6-006-100-400-0
    Wichita Clutch HTC 206Wichita Clutch ATD 206 HTC6-006-200-400-0
    Wichita Clutch HTC 108Wichita Clutch ATD 108 HTC6-008-100-407-0
    Wichita Clutch HTC 208Wichita Clutch ATD 208 HTC6-008-200-417-0
    Wichita Clutch HTC 308Wichita Clutch ATD 308 HTC6-008-300-400-0
    Wichita Clutch HTC 111Wichita Clutch ATD 111 HTC6-011-100-408-0
    Wichita Clutch HTC 211Wichita Clutch ATD 211 HTC6-011-200-422-0
    Wichita Clutch HTC 311Wichita Clutch ATD 311 HTC6-011-300-406-0
    Wichita Clutch HTC 114Wichita Clutch ATD 114 HTC6-014-100-405-0
    Wichita Clutch HTC 214Wichita Clutch ATD 214 HTC6-014-200-403-0
    Wichita Clutch HTC 314Wichita Clutch ATD 314 HTC6-014-300-411-0
    Wichita Clutch HTC 116Wichita Clutch ATD 116 HTC6-016-100-403-0
    Wichita Clutch HTC 216Wichita Clutch ATD 216 HTC6-016-200-402-0
    Wichita Clutch HTC 316Wichita Clutch ATD 316 HTC6-016-300-401-0
    Wichita Clutch HTC 118Wichita Clutch ATD 118 HTC6-018-100-400-0
    Wichita Clutch HTC 218Wichita Clutch ATD 218 HTC6-018-200-400-0
    Wichita Clutch HTC 318Wichita Clutch ATD 318 HTC6-018-300-400-0
    Wichita Clutch HTC 121Wichita Clutch ATD 121 HTC6-021-100-400-0
    Wichita Clutch HTC 221Wichita Clutch ATD 221 HTC6-021-200-401-0
    Wichita Clutch HTC 321Wichita Clutch ATD 321 HTC6-021-300-400-0
    Wichita Clutch HTC 124Wichita Clutch ATD 124 HTC6-024-100-401-0
    Wichita Clutch HTC 224Wichita Clutch ATD 224 HTC6-024-200-405-0
    Wichita Clutch HTC 324Wichita Clutch ATD 324 HTC6-024-300-401-0
    Wichita Clutch HTC 424Wichita Clutch ATD 424 HTC6-024-400-400-0
    Wichita Clutch HTC 127Wichita Clutch ATD 127 HTC6-027-100-404-0
    Wichita Clutch HTC 227Wichita Clutch ATD 227 HTC6-027-200-411-0
    Wichita Clutch HTC 327Wichita Clutch ATD 327 HTC6-027-300-402-0
    Wichita Clutch HTC 130Wichita Clutch ATD 130 HTC6-030-100-400-0
    Wichita Clutch HTC 230Wichita Clutch ATD 230 HTC6-030-200-408-0
    Wichita Clutch HTC 330Wichita Clutch ATD 330 HTC6-030-300-415-0
    Wichita Clutch HTC 136Wichita Clutch ATD 136 HTC6-036-100-400-0
    Wichita Clutch HTC 236Wichita Clutch ATD 236 HTC6-036-200-409-0
    Wichita Clutch HTC 336Wichita Clutch ATD 336 HTC6-036-300-404-0
    Wichita Clutch HTC 148Wichita Clutch ATD 148 HTC6-048-100-400-0
    Wichita Clutch HTC 248Wichita Clutch ATD 248 HTC6-048-200-406-0
    Wichita Clutch HTC 348Wichita Clutch ATD 348 HTC6-048-300-403-0
    • Notes

      Wichita High Torque Clutch Product Features

      • High torque to size ratio
      • Low rotating inertia
      • Extremely fast response
      • Air applied clutch with full circle friction discs
      • Available in 1,2,3 or 4 plate designs to suit torque, heat, response and space requirements.
      • Air connection via rotary union/seal/coupling mounted directly into front of clutch for fastest response time.
      • For dry use only.
