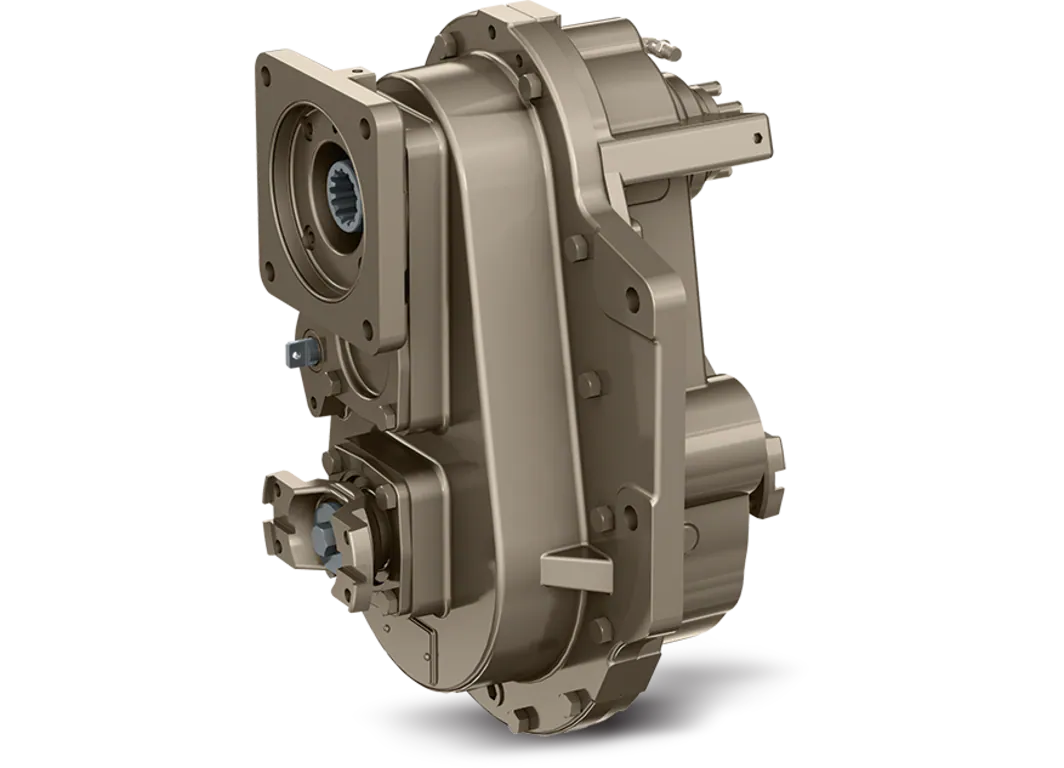

Palmer Johnson is an authorized Funk service center and distributor. We maintain an extensive inventory of Funk 18000 HMD transmission parts and complete transmissions along with factory trained technicians that can get you back up and running in no time. Contact the experts today to learn more about how we can help you with your Funk HMD transmission needs.
Ratings
Input power (max): 149 kW (200 hp))
Input torque (max): 949 Nm (700 lb-ft)
Input no load speed (max): 4000 rpm*
*Depending on ratio
General Data
Motor adapters: SAE C and D
Approximate dry weight: 161 kg (356 lb)
Oil capacity: 8.8 L (8 qt)
Oil type: J2OC or MIL-L-2105-C or API classification GL-5
Speeds: 2
Configuration: Drop - 183 mm (11.15 in)
Shift Options: Hydraulic, Mechanical
Applications: Dozing machines, motor graders, railway vehicles, sweepers, pavers, and virtually any equipment requiring controlled travel speed
- Authorized Distributor
- Genuine Parts
- Service and Support
Assembly & Model Numbers:
18000, HMD18000, YZ16736, YZ17167, YZ17262, YZ17732, YZ17879, YZ18068, YZ18933, YZ19080, YZ19289, YZ19371, YZ17163, YZ18509, YZ19223, YZ19279, YZ19581, YZ20439, YZ19920, YZ20012, Yz20283, Yz20566, DZ107201
