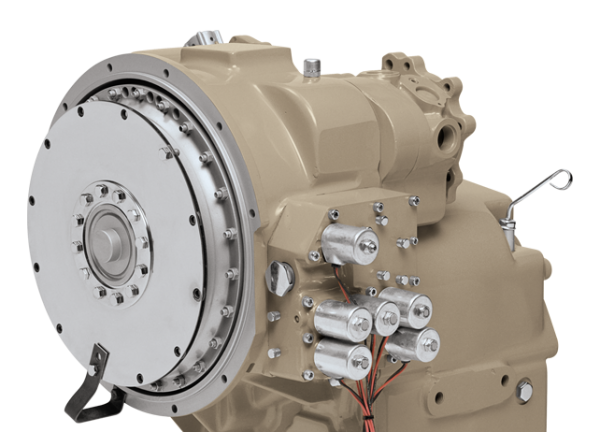

Funk 2000 Powershift Transmission

Palmer Johnson is an authorized Funk service center and distributor. We maintain an extensive inventory of Funk 2000 powershift transmission parts along with factory trained technicians that can get you back up and running in no time. Contact the experts today to learn more about how we can help you with your Funk 2000 powershift transmission needs.


Net input power (max): 168 kW (225 hp)

Input no load speed (max): 3000 rpm

Converter stall torque (max): 1627 Nm (1200 lb-ft)

General Data

Input: Counterclockwise

Output (forward gears) counterclockwise: 473.2 mm (18.63 in) drop

Output (forward gears) clockwise: 244.6 mm (9.63 in) drop

Approximate dry weight: 336-408 kg (742-900 lb)

Mounting: Engine, midship, or remote

Speeds: 3F/3R, 4F/3R, 6F/3R

  • Notes

    Assembly & Model Numbers:

    2133E110B, 2133E1300B, 2133E130B, 2133H00OB, 2133M130B, 2143E130B, 2143E14, 2152E130B, 2163E110B, 2163E130B, 2163E14, 2163E140B, 2163H000B, 2222R000B, 2233E110B, 2233E13DB, 2233E14, 2233H00DB, 2233R000B, 2243E13NB, 2243E14NB, 2243H000B, 2244H000B, 2252M110B, 2263E1, 2263E13, 2263E1301B, 2263E130B, 2263E13B, 2263E13DB, 2263E13NB, 2263E140B, 2263E14DB, 2263E14NB, 2263H000B, 2263H00DB, 2263H00NB, 2263M13DB, 2263M14DB, 2263R000B, 2263R00DB, 2333E13DB, 2333E140B, 2363E13BC, 2363E2130B, 2000, 2133, 2143, 2152, 2163, 2222, 2233, 2243, 2244, 2252, 2263, 2333, 2363, 10133, 10294, 10610, 10852, 11061, 11135, 11297, 11581, 11959, 12078, 12607, 12647, 12908, 13456, 13474, 13545, 13623, YZ10133, YZ10294, YZ10610, YZ10852, YZ11061, YZ11135, YZ11297, YZ11581, YZ11959, YZ12078, YZ12607, YZ12647, YZ12908, YZ13456, YZ13474, YZ13545, YZ13623, YZ15805, YZ13878, YZ13885, YZ13978, YZ14169, YZ14215, YZ14277, YZ14334, YZ14347, YZ14360, YZ14481, YZ14483, YZ14494, YZ14606, YZ14625, YZ14637, YZ14686, YZ14837, YZ14913, YZ14961, YZ14994, YZ15105, YZ15175, YZ15176, YZ15328, YZ15341, YZ15513, YZ15934, YZ15948, YZ16395, YZ16568, YZ16581, YZ16586, YZ16732, YZ16756, YZ16791, YZ16792, YZ17090, YZ17129, YZ17152, YZ17204, YZ17586, YZ17606, YZ17857, YZ17903, YZ18781, YZ18784, YZ18795, YZ18870, YZ18900, YZ18930, YZ18943, YZ19058, YZ19227, YZ19296, YZ19318, YZ19357, YZ19393, YZ19415, YZ19464, YZ19482, YZ19720, YZ19734, YZ19244, YZ19307, YZ19341, YZ19599, YZ19716, YZ19764, YZ19925, YZ20347, YZ20490, YZ20100, YZ13891, YZ14907, YZ14926, YZ14969, YZ15078, YZ15394, YZ16404, YZ17052, YZ17118, YZ17953, YZ18164, YZ19023, YZ13928, YZ14502, YZ19078

  • Downloads

Service done right

Funk Service Network

Palmer Johnson's six-location factory-authorized service center network features:

  • Factory-trained technicians
  • Field service
  • Onsite troubleshooting and diagnostics
  • Unit removal and installation

For Funk service, call 1-800-341-4334.
