Spotlight on Twin Disc Control Head

Palmer Johnson has had a long lasting partnership with Twin Disc. Today, we are proud to spotlight one of their latest products that is at the forefront of marine technology.

About the EC300:

Twin Disc's newest, commercial-grade EC300 Power Commander propulsion control system provides superior transmission and throttle handling. All single and twin lever control heads now feature contactless sensors for a long, reliable service life.

The EC300 has a magnetic, contactless Hall Effect sensor for monitoring lever position. It outlasts other electro-mechanical/potentiometer type sensors and provides the longest shifting service life available. During a test that involved over four million cycles, the EC300 did not have a single loss of lever position signal.

With a Twin Disc Quickshift® transmission, it's also more sensitive. Minute lever adjustments translate into instant transmission response. The first 25 degrees of lever travel provide slow-speed trolling; the following 30 degrees control engine RPMs. This is critical for maneuverability, whether pushing a tow or backing down on a marlin.

Options:

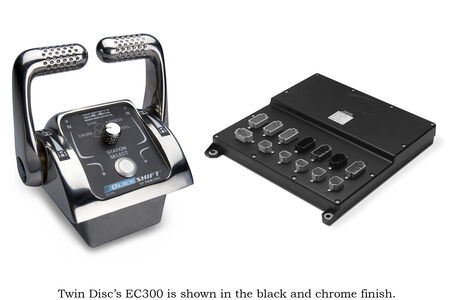

Built for extreme conditions, the EC300 is one of the most durable heads in the industry. Its rugged housing is made from polished stainless steel and sealed for commercial or flybridge use. Control head options include extra tall handles and black finish which is shown in the image below.

Twd23266 X7H

The EC300 provides active system monitoring, diagnostics and fault indication with event logging, and optional data display. The system will accept up to eight stations, each with independent port and starboard communication cables, and features dual CAN bus technology for increased station redundancy. Each control head also has port and starboard auxiliary connectors for things such as activating throttle limit, station lockout clutch disable/FiFi, bow thruster and audible alarm.

The EC300 system can be programmed to fit many specific application or regulation requirements. Additionally, the basic system is Express Joystick System® (EJS) ready when paired with Twin Disc's Quickshift® Transmissions.
